Blue Sea Systems  |  SKU: BSS-5005

Blue Sea - ANL Fuse Blocks

$46.29 CAD
Size

Pickup available at Nanaimo Store

Usually ready in 24 hours

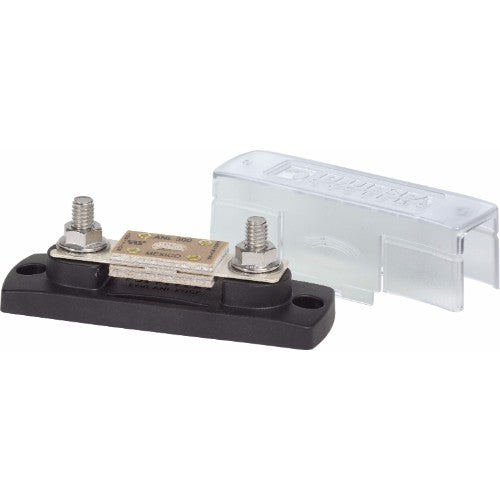

ANL Fuse Block with Insulating Cover
  • Accepts 5/16" (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately
BSS 5005 BSS 5503
MAX Amps 300 A 750 A
MAX torque 110 in-lb 107 in-lb
Mounting #10 screw 1/4"
Cable Size 2/0 4/0
ANL Fuses 35-300 amps 35-750 amps
Dimensions H: 1.649" x W: 1.5" x L: 4.5" H: 2.3" x W: 2" x L:7"
BSS 5005 - ANL Fuse Block with Insulating Cover - 35 to 300A
BSS 5503 - ANL Fuse Block with Insulating Cover - 35 to 750A
