Blue Sea Systems  |  SKU: BSS-5005

Blue Sea Systems ANL Fuse Block with Insulating Cover

$59.99 CAD
Size
Ships By Sun, July 12 Free Canada Shipping over $120

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help

If something isn’t right, reach out and we’ll make it right.

The Blue Sea Systems ANL Fuse Block provides a safe and reliable solution for protecting high-amperage DC electrical circuits in marine, RV, off-grid, and automotive applications. Designed to accept ANL fuses, these fuse blocks feature a durable reinforced polycarbonate base, corrosion-resistant stainless steel studs, and a protective insulating cover that helps prevent accidental contact with energized terminals.

The swing-out design allows fuse replacement without removing mounting fasteners, making maintenance quick and convenient. Cover breakouts permit cable entry from multiple directions, while the integrated insulating cover meets ABYC and USCG requirements for marine electrical installations.

Available in two sizes to accommodate a wide range of electrical systems, these fuse blocks are ideal for battery banks, inverter circuits, charging systems, trolling motors, windlasses, and other high-current applications.

Features

  • Includes protective insulating cover
  • Compatible with ANL fuses
  • Suitable for systems up to 32V DC
  • Corrosion-resistant stainless steel studs
  • Tin-plated copper fuse mounting blocks
  • Reinforced polycarbonate construction
  • Swing-out design simplifies fuse replacement
  • Cover breakouts allow flexible cable routing
  • Meets ABYC and USCG insulation requirements
  • Ideal for marine, RV, automotive, and off-grid electrical systems

Variant Options

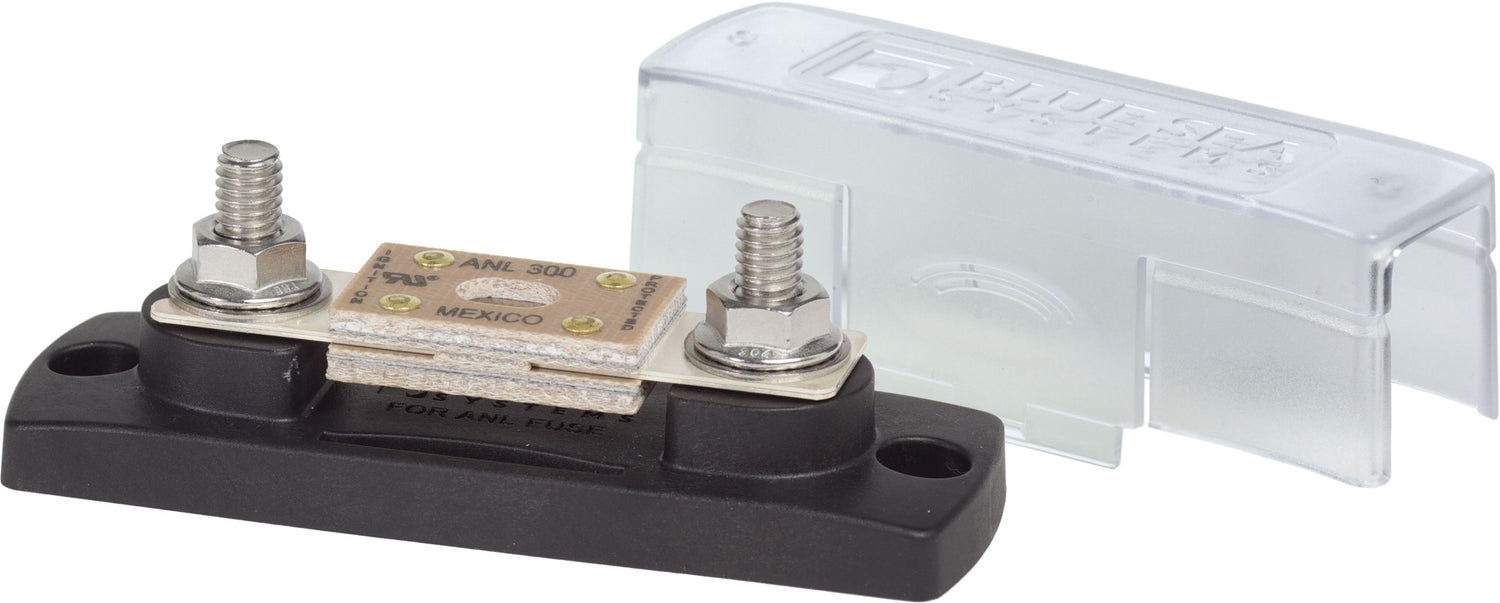

35A–300A ANL Fuse Block (PN 5005)

  • Supports ANL fuses from 35A to 300A
  • Maximum cable size: 2/0 AWG
  • 5/16"-18 (M8) terminal studs
  • Ideal for medium- to high-current circuits

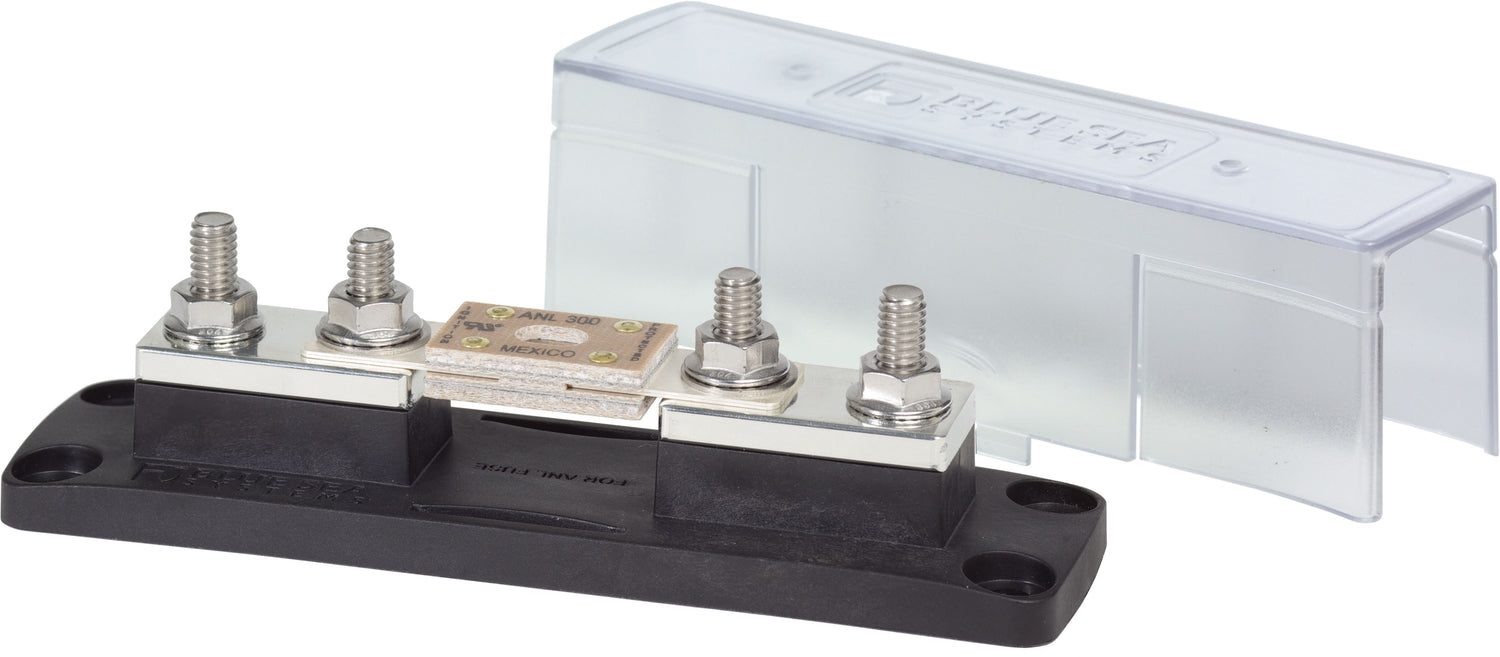

35A–750A ANL Fuse Block (PN 5503)

  • Supports ANL fuses from 35A to 750A
  • Maximum cable size: 4/0 AWG
  • 5/16"-18 (M8) terminal studs
  • Designed for large battery banks, inverter systems, and high-current installations

Blue Sea Systems ANL Fuse Block FAQ

What is an ANL fuse block used for?

An ANL fuse block safely holds an ANL fuse and protects high-amperage DC circuits from overloads and short circuits.

What is the difference between the 5005 and 5503 fuse blocks?

The 5005 model supports ANL fuses from 35A to 300A and accepts cable sizes up to 2/0 AWG. The 5503 model supports ANL fuses from 35A to 750A and accepts cable sizes up to 4/0 AWG.

Does the fuse block include a cover?

Yes. Both versions include an insulating cover that helps protect against accidental contact with energized terminals and meets ABYC and USCG requirements.

Can these fuse blocks be used on boats?

Yes. Blue Sea Systems designed these fuse blocks specifically for marine electrical installations and harsh operating environments.

Are fuses included?

No. ANL fuses are sold separately and must be selected based on the circuit's amperage requirements.

What voltage systems are supported?

These fuse blocks are designed for DC electrical systems up to 32 volts.
