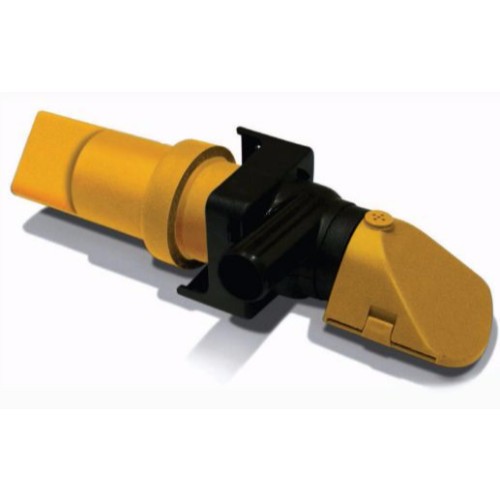

Whale Supersub Smart 650gph Bilge Pump

Narrow design ideal for tight spaces, automatically senses bilge water level and switches on and off.

• Narrow design ideal for tight spaces, automatically senses bilge water level and switches on and off.
• Quick and easy installation - multi-position pump head and body
• Unaffected by wave motion
• Solid state switching - no moving parts
• Environmentally friendly - mercury free
• Integrated bleed ball prevents airlocks
• Electric field sensor technology
• Easy to clean
• For use with Non Return Valve LV1219 Whale Super Sub Smart Bilge Pump Instructions

https://www.youtu.be/Hm66tpbRn-M Specifications

• Model: Supersub Smart 650
• Product Code: SS5212
• Open Flow Rate at 13 V d.c.: 2400 ltrs per hour (650 US gals per hour)
• Flow Rate at 1 m (3 ft) head: 2040 ltrs per hour (550 US gal per hour)
• Nominal Voltage: 12Vdc
• Current Draw: 3.4 amps
• Recommended Automotive Fuse: 5 Amp
• Weight: 0.326 kg (0.71 lbs)
• Hose Connection: 19 mm (1/4")
• Wire Size: 1.5 mm (16 AWG) Caulked Wire
• Materials: Pump Body Polypropylene, High Temperature ABS, Fully Potted Circuitry. Locking Ring Acetal. Impeller Glass Filled PBT. Seals Nitrile. Fasteners Stainless Steel
• Maximum Head Discharge: 3 m (9.8 ft)
• Max Overall Height: 75 mm (2-15/16")
• Max Overall Width: 54 mm (2")
• Overall Length: 212 mm (8")
