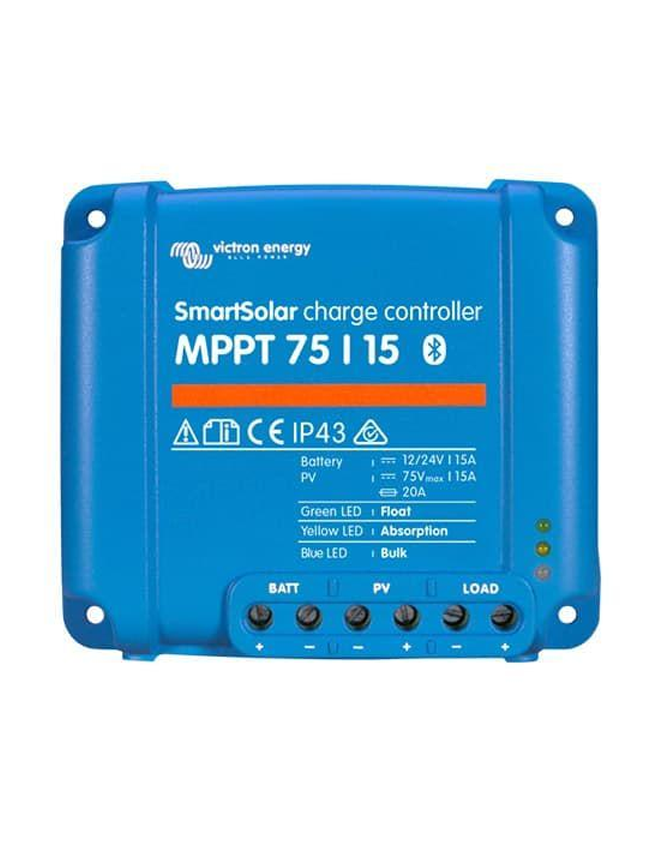

Victron SmartSolar MPPT 75/15 Solar Charge Controller (UL 1741)

The Victron SmartSolar MPPT 75/15 is a compact solar charge controller for marine, RV, van, cabin and off-grid battery systems. Its ultra-fast Maximum Power Point Tracking technology continually adjusts to changing sunlight conditions, helping your solar panels produce as much usable charging energy as possible throughout the day.

With a maximum PV open-circuit voltage of 75V and charging output of up to 15A, the SmartSolar MPPT 75/15 automatically recognizes 12V and 24V battery systems. It supports rated solar power of up to 220W with a 12V battery bank or 440W with a 24V battery bank.

Built-in Bluetooth allows you to monitor solar production, review charging history, configure settings and install firmware updates through the VictronConnect app. The VE.Direct port can also connect the controller to compatible Victron equipment, including a GX device for local monitoring and remote access through the Victron Remote Management portal and VRM app.

An integrated load output can disconnect connected DC loads before the battery becomes excessively discharged. Victron’s BatteryLife algorithm helps manage the load-output threshold and works to return the battery to a full charge regularly.

This retail model is certified to UL 1741.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 75V
• Maximum battery-charging current of 15A
• Automatic 12V and 24V battery-voltage detection
• Built-in Bluetooth
• Monitoring and configuration through VictronConnect
• VE.Direct communication port
• Integrated 15A load output
• BatteryLife intelligent load management
• Programmable adaptive battery-charging algorithm
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal with a compatible GX device
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 75/15
• Store SKU: VEN-SCC075015060
• Victron article number/MPN: SCC075015060R
• GTIN-13: 8719076040804
• Battery voltage: 12V or 24V
• Maximum charge current: 15A
• Maximum PV open-circuit voltage: 75V
• Rated PV power at 12V: 220W
• Rated PV power at 24V: 440W
• Maximum load-output current: 15A
• Maximum efficiency: 98%
• Communication: Bluetooth and VE.Direct
• Dimensions: 100 × 113 × 40 mm
• Weight: Approximately 0.5 kg
• Safety standard: Certified to UL 1741

Installation note:

The solar array’s maximum open-circuit voltage, including voltage increases caused by cold temperatures, must remain below 75V. Solar wiring, fusing, circuit protection and charging settings must be correctly sized for the installation.
