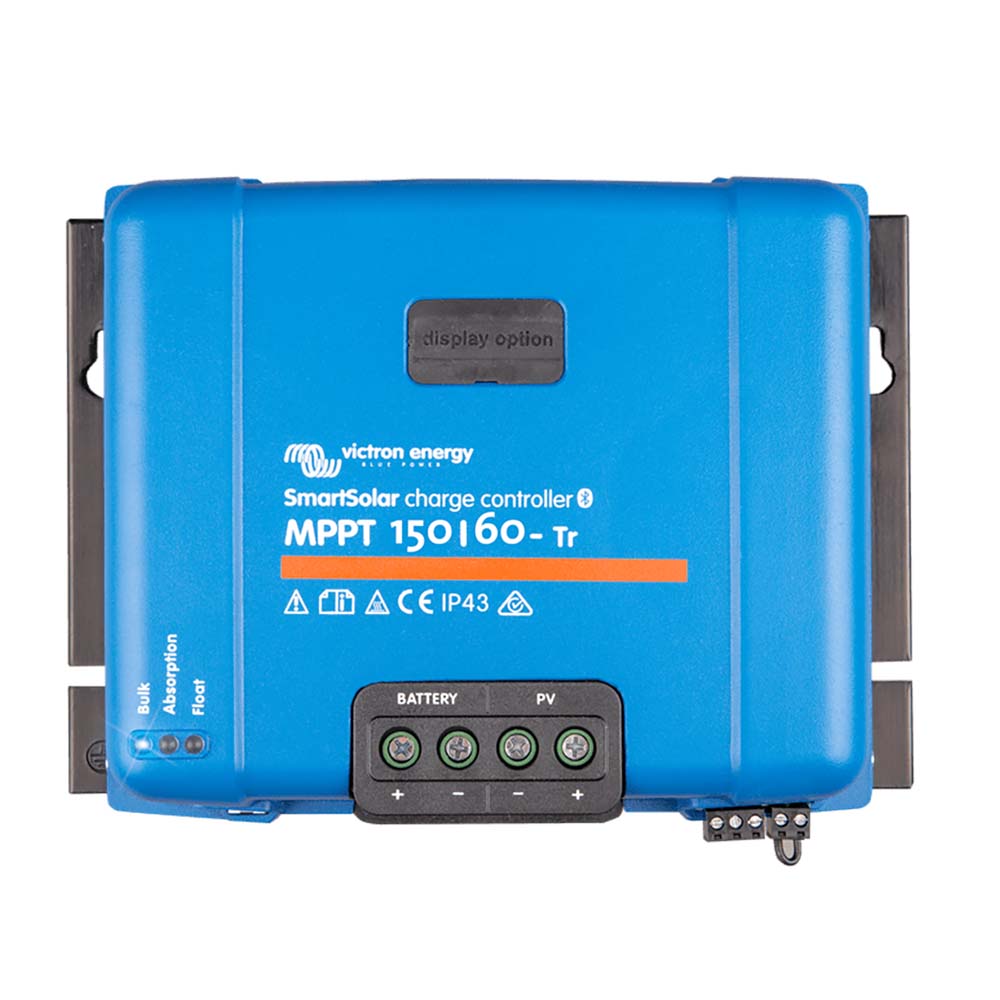

Victron SmartSolar MPPT 150/60-Tr Solar Charge Controller (UL 1741)

The Victron SmartSolar MPPT 150/60-Tr is a powerful solar charge controller designed for larger marine, RV, cabin and off-grid battery systems. Its ultra-fast Maximum Power Point Tracking technology continually adjusts to changing sunlight conditions, helping your solar array generate as much usable charging energy as possible throughout the day.

With a maximum PV open-circuit voltage of 150V and charging output of up to 60A, the SmartSolar MPPT 150/60-Tr supports 12V, 24V, 36V and 48V battery systems. The Tr version uses secure screw-terminal connections and supports solar arrays rated up to 3,440W when paired with a 48V battery bank.

Built-in Bluetooth allows you to monitor charging performance, adjust settings and install firmware updates through the VictronConnect app. The VE.Direct port can connect the controller to compatible Victron monitoring equipment, including a GX device for local monitoring and remote access through the Victron Remote Management portal and VRM app.

An optional SmartSolar Control Display can be installed directly on the charger for convenient on-device monitoring. With intelligent battery charging, flexible system integration and comprehensive electronic protection, the SmartSolar MPPT 150/60-Tr is a dependable solution for high-capacity solar installations.

This model is certified to UL 1741.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 150V
• Maximum battery-charging current of 60A
• Supports 12V, 24V, 36V and 48V battery systems
• Built-in Bluetooth connectivity
• Monitoring and configuration through VictronConnect
• VE.Direct communication port
• Screw-terminal PV connections
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal with a compatible GX device
• Optional SmartSolar Control Display support
• Programmable adaptive battery-charging algorithm
• Remote on/off connection
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 150/60-Tr
• Store SKU: VEN-SCC115060211
• Victron article number/MPN: SCC115060211
• GTIN-13: 8719076051381
• Battery voltage: 12V, 24V, 36V or 48V
• Maximum charge current: 60A
• Maximum PV open-circuit voltage: 150V
• Rated PV power at 12V: 860W
• Rated PV power at 24V: 1,720W
• Rated PV power at 36V: 2,580W
• Rated PV power at 48V: 3,440W
• Maximum efficiency: 98%
• PV connection type: Screw terminals
• Communication: Bluetooth and VE.Direct
• Dimensions: 200 × 250 × 95 mm
• Weight: Approximately 3 kg
• Safety standard: Certified to UL 1741

Compatibility note:

This model does not include VE.Can. Choose a VE.Can-equipped SmartSolar model when multiple chargers need to share a VE.Can communication network.

Installation note:

The solar array’s maximum open-circuit voltage, including voltage increases caused by cold temperatures, must remain below 150V. Wiring, fusing, circuit protection and charger settings must be correctly sized for the installation.
