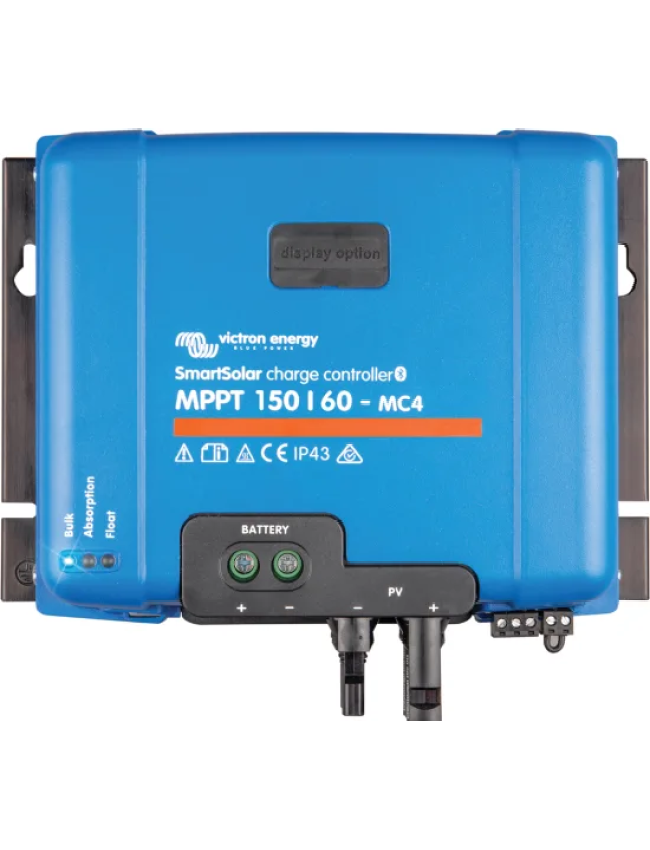

Victron SmartSolar MPPT 150/60-MC4 Solar Charge Controller (UL 1741)

The Victron SmartSolar MPPT 150/60-MC4 is a high-performance solar charge controller for marine, RV, cabin and off-grid battery systems. Its ultra-fast Maximum Power Point Tracking technology continually adjusts to changing sunlight conditions, helping your solar array produce as much usable charging energy as possible throughout the day.

With a maximum PV open-circuit voltage of 150V and charging output of up to 60A, the SmartSolar MPPT 150/60-MC4 supports 12V, 24V, 36V and 48V battery systems. It can manage rated solar power of up to 3,440W when used with a 48V battery bank.

The MC4 version provides convenient, secure connections for compatible solar-panel cabling. Built-in Bluetooth allows you to monitor solar production, review charging history, adjust settings and install firmware updates through the VictronConnect app.

A VE.Direct port allows connection to compatible Victron monitoring equipment, including a GX device for local monitoring and remote access through the Victron Remote Management portal and VRM app. An optional SmartSolar Control Display can also be installed directly on the charger for convenient on-device monitoring.

This model is certified to UL 1741.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 150V
• Maximum battery-charging current of 60A
• Supports 12V, 24V, 36V and 48V battery systems
• MC4 solar connections
• Built-in Bluetooth
• Monitoring and configuration through VictronConnect
• VE.Direct communication port
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal with a compatible GX device
• Optional SmartSolar Control Display support
• Programmable adaptive battery-charging algorithm
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 150/60-MC4
• Store SKU: VEN-SCC115060311
• Victron article number/MPN: SCC115060311
• GTIN-13: 8719076051398
• Battery voltage: 12V, 24V, 36V or 48V
• Maximum charge current: 60A
• Maximum PV open-circuit voltage: 150V
• Rated PV power at 12V: 860W
• Rated PV power at 24V: 1,720W
• Rated PV power at 36V: 2,580W
• Rated PV power at 48V: 3,440W
• Maximum efficiency: 98%
• PV connection type: MC4
• Communication: Bluetooth and VE.Direct
• Dimensions: 200 × 250 × 95 mm
• Weight: Approximately 3 kg
• Safety standard: Certified to UL 1741

Compatibility note:

This model does not include VE.Can connectivity. Choose a VE.Can-equipped SmartSolar model when multiple chargers need to share a VE.Can communication network.

Installation note:

The solar array’s maximum open-circuit voltage, including voltage increases caused by cold temperatures, must remain below 150V. Confirm MC4 connector compatibility and correctly size all wiring, fusing and circuit protection.
