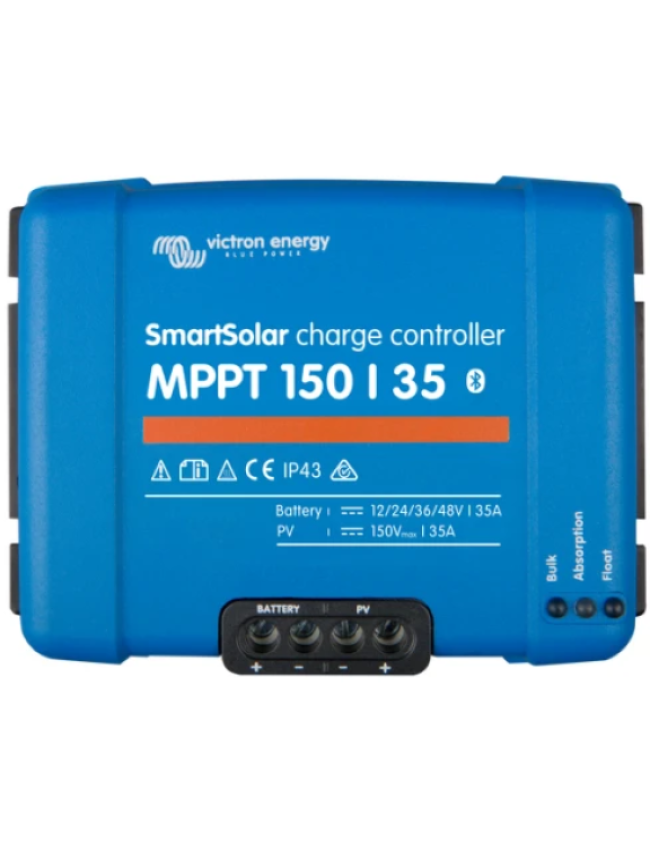

The Victron SmartSolar MPPT 150/35 is an efficient solar charge controller for marine, RV, cabin and off-grid battery systems. Its ultra-fast Maximum Power Point Tracking technology continually adjusts to changing sunlight conditions, helping your solar array produce as much usable charging energy as possible throughout the day.
With a maximum PV open-circuit voltage of 150V and charging output of up to 35A, the SmartSolar MPPT 150/35 supports 12V, 24V, 36V and 48V battery systems. It can manage rated solar power of up to 2,000W when used with a 48V battery bank.
Built-in Bluetooth allows you to monitor solar production, review charging history, configure settings and install firmware updates through the VictronConnect app. The VE.Direct port can also connect the controller to compatible Victron equipment, including a GX device for local system monitoring and remote access through the Victron Remote Management portal and VRM app.
Its programmable adaptive charging algorithm supports a range of battery technologies, while comprehensive electronic protection helps provide dependable performance in demanding power systems.
This model is certified to UL 1741.
Features:
- Ultra-fast Maximum Power Point Tracking technology
- Maximum PV open-circuit voltage of 150V
- Maximum battery-charging current of 35A
- Supports 12V, 24V, 36V and 48V battery systems
- Built-in Bluetooth
- Monitoring and configuration through VictronConnect
- VE.Direct communication port
- Screw-terminal connections
- Compatible with Victron GX monitoring devices
- Remote monitoring through the VRM Portal with a compatible GX device
- Programmable adaptive battery-charging algorithm
- Protection against overheating, output short circuits and incorrect PV polarity
- Certified to UL 1741
Specifications:
- Manufacturer: Victron Energy
- Model: SmartSolar MPPT 150/35
- Victron article number/MPN: SCC115035210
- GTIN-13: 8719076040187
- Battery voltage: 12V, 24V, 36V or 48V
- Maximum charge current: 35A
- Maximum PV open-circuit voltage: 150V
- Rated PV power at 12V: 500W
- Rated PV power at 24V: 1,000W
- Rated PV power at 36V: 1,500W
- Rated PV power at 48V: 2,000W
- Maximum efficiency: 98%
- Communication: Bluetooth and VE.Direct
- Dimensions: 130 × 186 × 70 mm
- Weight: Approximately 1.3 kg
- Safety standard: Certified to UL 1741
Compatibility note:
This model does not include VE.Can connectivity. A compatible GX device can be connected through VE.Direct for expanded local and remote monitoring.
Installation note:
The solar array’s maximum open-circuit voltage, including voltage increases caused by cold temperatures, must remain below 150V. Wiring, fusing, circuit protection and charging settings must be correctly sized for the installation.
