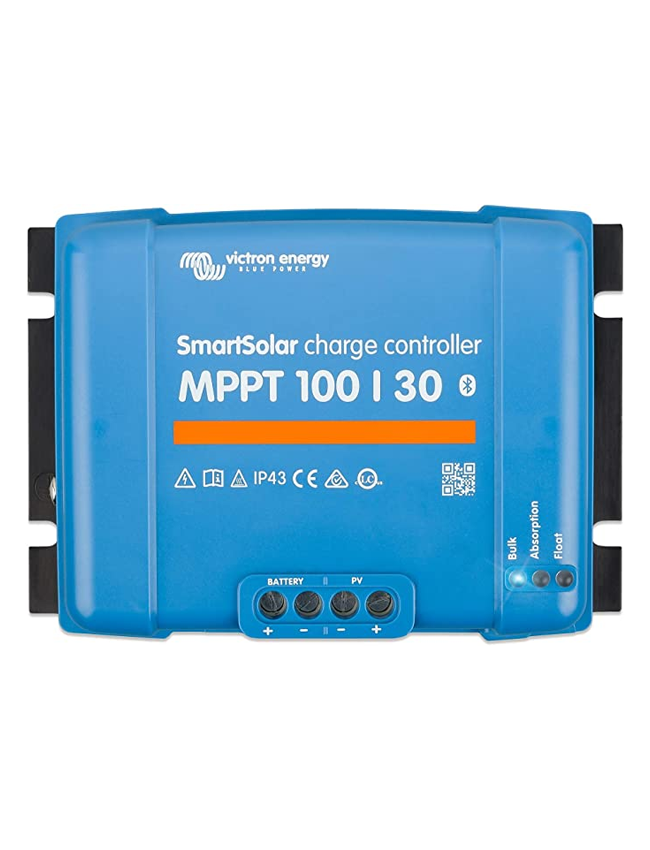

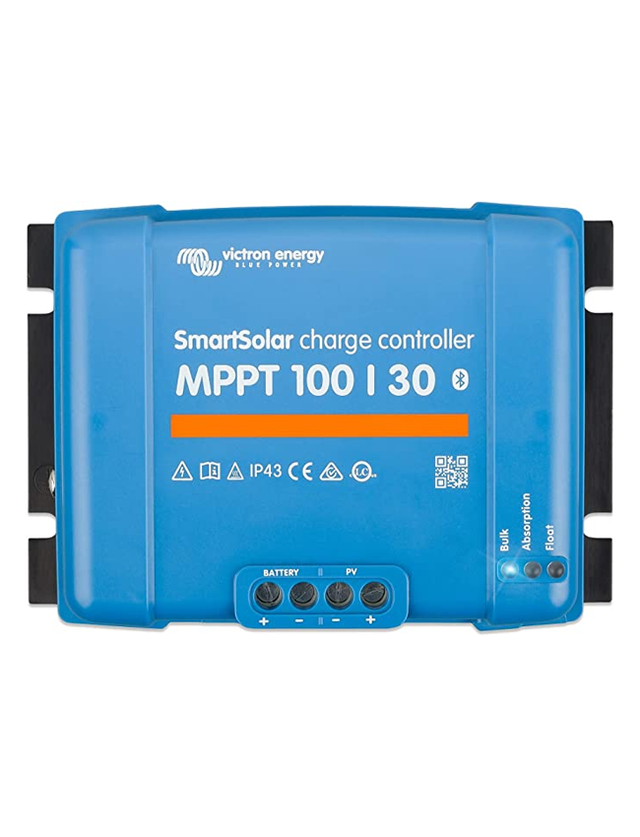

Victron SmartSolar MPPT 100/30 Solar Charge Controller (UL 1741)

The Victron SmartSolar MPPT 100/30 is an efficient solar charge controller for marine, RV, cabin and off-grid battery systems. Its ultra-fast Maximum Power Point Tracking technology continually adjusts to changing sunlight conditions, helping your solar array produce as much usable charging energy as possible throughout the day.

With a maximum PV open-circuit voltage of 100V and charging output of up to 30A, the SmartSolar MPPT 100/30 automatically recognizes 12V and 24V battery systems. It supports rated solar power of up to 440W with a 12V battery bank or 880W with a 24V battery bank.

Built-in Bluetooth allows you to monitor solar production, review charging history, configure settings and install firmware updates through the VictronConnect app. The VE.Direct port can also connect the controller to compatible Victron equipment, including a GX device for local system monitoring and remote access through the Victron Remote Management portal and VRM app.

With intelligent adaptive charging, flexible system integration and comprehensive electronic protection, the SmartSolar MPPT 100/30 provides efficient and dependable battery charging for medium-sized solar installations.

This model is certified to UL 1741.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 100V
• Maximum battery-charging current of 30A
• Automatic 12V and 24V battery-voltage detection
• Built-in Bluetooth
• Monitoring and configuration through VictronConnect
• VE.Direct communication port
• Screw-terminal connections
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal with a compatible GX device
• Programmable adaptive battery-charging algorithm
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Model: SmartSolar MPPT 100/30
• Victron article number/MPN: SCC110030210
• GTIN-13: 8719076040170
• Battery voltage: 12V or 24V
• Maximum charge current: 30A
• Maximum PV open-circuit voltage: 100V
• Rated PV power at 12V: 440W
• Rated PV power at 24V: 880W
• Maximum efficiency: 98%
• Connection type: Screw terminals
• Communication: Bluetooth and VE.Direct
• Dimensions: 130 × 186 × 70 mm
• Weight: Approximately 1.3 kg
• Safety standard: Certified to UL 1741

Compatibility note:

This model does not include VE.Can connectivity. A compatible GX device can be connected through VE.Direct for expanded local and remote monitoring.

Installation note:

The solar array’s maximum open-circuit voltage, including voltage increases caused by cold temperatures, must remain below 100V. Solar wiring, fusing, circuit protection and charging settings must be correctly sized for the installation.
