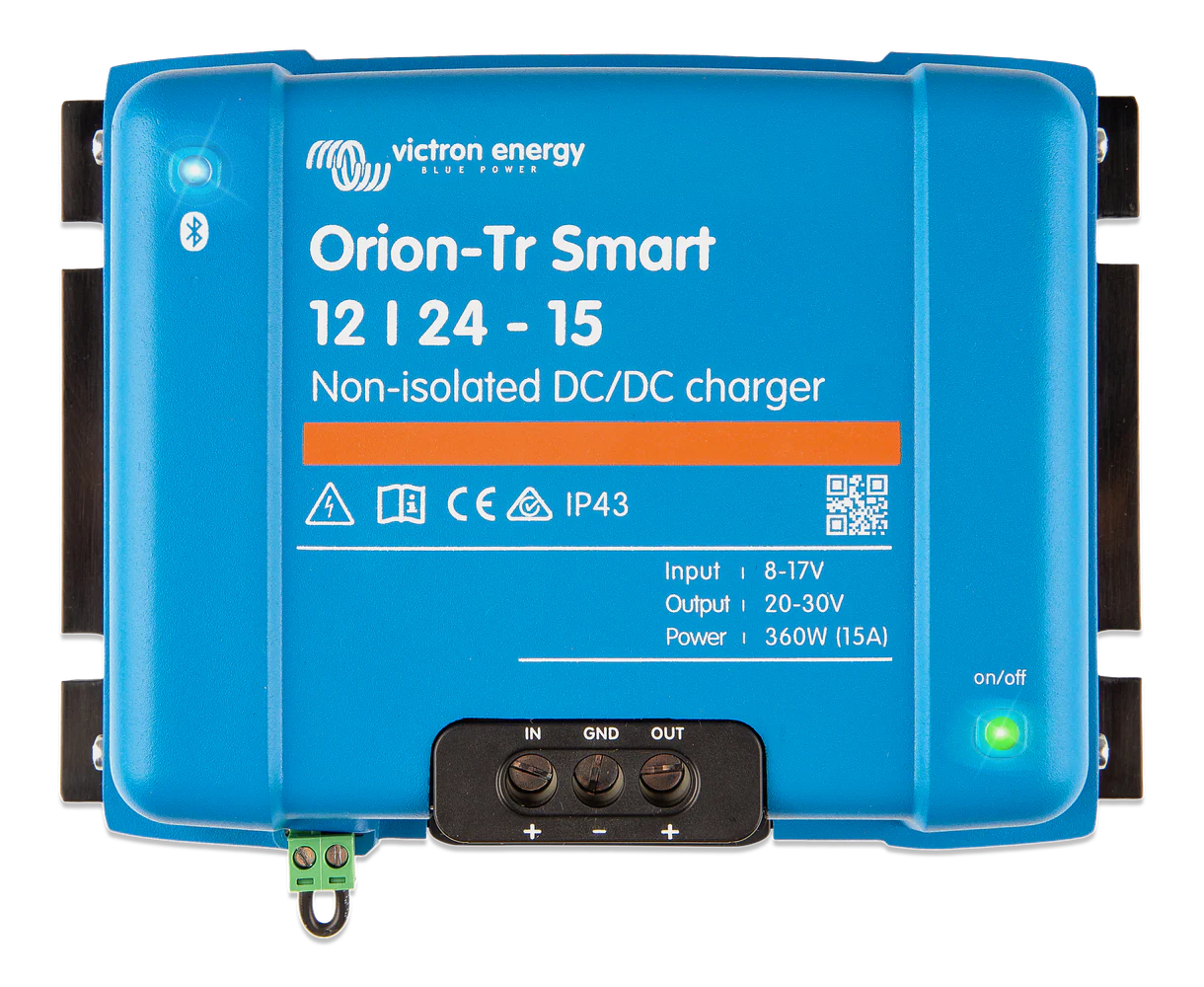

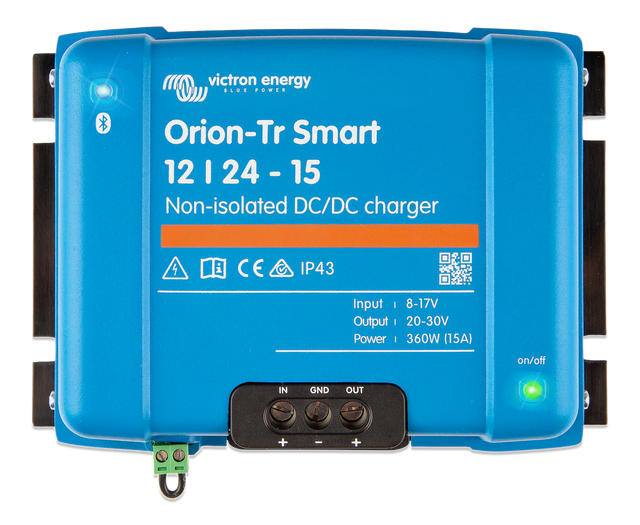

Victron Orion-Tr Smart 12/24-15A Non-Isolated DC-DC Charger

The Victron Orion-Tr Smart 12/24-15A is a Bluetooth-enabled, non-isolated DC-DC battery charger designed to charge a 24V auxiliary battery bank from a 12V starter system. Delivering up to 15A and 360W at 40°C, it is suitable for marine, RV, van and vehicle installations requiring dependable alternator charging.

Its fully programmable three-stage charging algorithm can be configured for lead-acid and lithium batteries through the VictronConnect app. Built-in Bluetooth provides convenient access to charging settings, input and output voltage, charger status and other operating information from a compatible phone or tablet.

Intelligent engine-running detection allows the charger to operate without a separate ignition-control wire in many installations. The charger can also be switched remotely using its remote on/off connection.

The Orion-Tr Smart can operate as either a three-stage battery charger or a regulated DC power supply. Multiple compatible units may be connected in parallel when additional charging output is required.

This is a non-isolated model, meaning the input and output share a common negative connection.

Features:

• Converts a 12V DC input to charge a 24V battery bank
• 15A continuous charging output at 40°C
• 360W continuous output at 40°C
• Built-in Bluetooth
• Monitoring and configuration through VictronConnect
• Programmable three-stage charging algorithm
• Suitable for lead-acid and lithium batteries
• Intelligent engine-running detection
• Remote on/off connection
• Battery-charger and power-supply operating modes
• Adjustable output voltage
• Parallel operation for increased output
• Short-circuit protection
• Temperature protection and output derating
• Screw-terminal connections
• Non-isolated common-negative design

Specifications:

• Manufacturer: Victron Energy
• Model: Orion-Tr Smart 12/24-15A Non-Isolated
• Victron article number/MPN: ORI122436140
• GTIN-13: 8719076048961
• Input voltage: 12V DC nominal
• Input-voltage range: 10–17V DC
• Output voltage: 24V DC nominal
• Adjustable output range: 20–30V DC
• Continuous output current at 40°C: 15A
• Continuous output power at 40°C: 360W
• Continuous output power at 25°C: 430W
• Maximum efficiency: 88%
• Isolation: Non-isolated
• Communication: Bluetooth
• Connection type: Screw terminals
• Dimensions: 130 × 186 × 80 mm
• Weight: Approximately 1.8 kg
• Protection rating: IP43 when installed with terminals facing downward

Important compatibility note:

This charger is for charging a 24V auxiliary battery from a 12V electrical system. It is non-isolated, so the starter and auxiliary systems share a common negative connection. Choose an isolated model if galvanic separation is required.

The Orion-Tr Smart does not have a VE.Direct or VE.Can communication port. Bluetooth is used for local monitoring and configuration through VictronConnect.

Installation note:

Correctly size the battery cables, fuses and circuit protection for the installation. Configure the charging profile for the connected battery chemistry before use. Professional installation is recommended for marine and vehicle charging systems.
