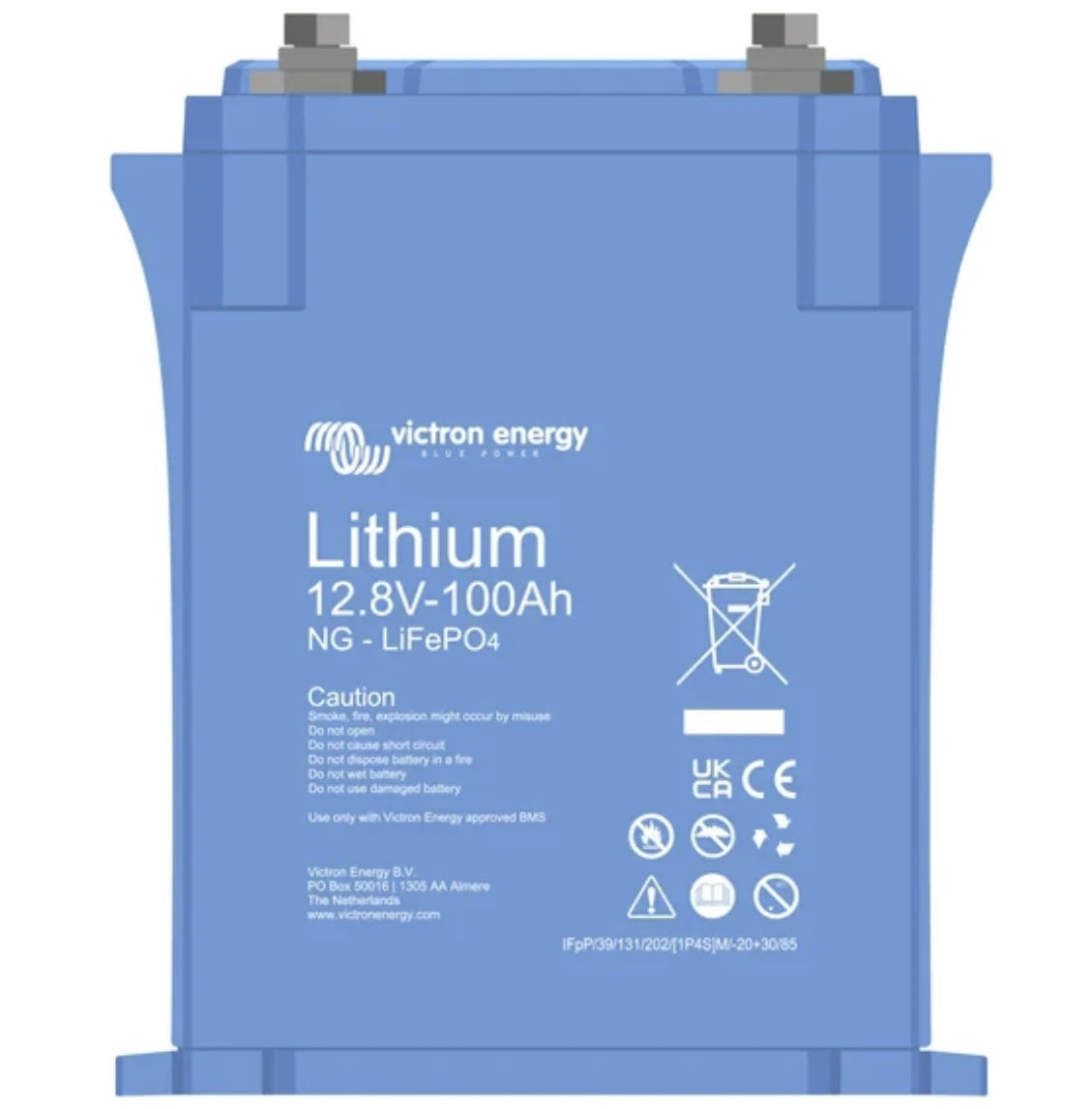

Victron Lithium NG 12.8V/100Ah LiFePO4 Battery – BAT512110620

The Victron Energy Lithium NG 12.8V/100Ah is a lithium iron phosphate (LiFePO4) battery for marine, RV, cabin, off-grid and home backup systems. It delivers 1280Wh of nominal energy, up to 2,500 cycles at 80% depth of discharge and an IP65-rated case, in a 9 kg package.

Lithium NG is Victron's newest battery platform. Every battery has an integrated shunt that measures cell voltages, temperatures and current, and sends that data over a high-speed digital link to a Lynx Smart BMS 500 NG or Lynx Smart BMS 1000 NG. The BMS protects the battery, calculates state of charge, and controls your Victron chargers, inverter/chargers and solar charge controllers so they charge the battery correctly.

You can monitor the system with the VictronConnect app through the BMS's Bluetooth, on a GX device such as the Cerbo GX, or remotely through the Victron Remote Management (VRM) portal. Battery firmware is updated automatically by the BMS.

Batteries can be connected in parallel, series or series/parallel to build 12V, 24V or 48V banks, with up to 50 batteries on a single Lynx Smart BMS NG.

Features:

• 12.8V, 100Ah lithium iron phosphate (LiFePO4) chemistry
• 1280Wh nominal energy and 92% round-trip efficiency
• 2,500 cycles at 80% DoD, 3,000 at 70% DoD and 5,000 at 50% DoD
• 100A continuous charge and discharge current (1C), 200A for 10 seconds
• Integrated shunt with cell voltage, temperature and current measurement
• High-speed digital communication with the Lynx Smart BMS NG
• Automatic battery firmware updates through the BMS
• Scalable to 12V, 24V or 48V banks, up to 50 batteries per BMS
• IP65-rated case that can be mounted upright or on its side
• Repairable design with a screw-on cover
• Cells tested to UL 1973, UL 9540A and IEC 62619

Specifications:

• Manufacturer: Victron Energy
• Model: Lithium NG LFP-12.8/100
• Victron article number/MPN: BAT512110620
• Chemistry: Lithium iron phosphate (LiFePO4 / LFP)
• Nominal voltage: 12.8V
• Nominal capacity at 25°C: 100Ah
• Nominal energy at 25°C: 1280Wh
• Round-trip efficiency: 92% (at ≤1C discharge)
• Cycle life: 2,500 at 80% DoD, 3,000 at 70% DoD, 5,000 at 50% DoD (to ≥80% of nominal capacity)
• Capacity and energy loss: less than 1% per 100 cycles at 25°C, 100% DoD
• Maximum continuous charge and discharge current: 100A (1C)
• Maximum pulse charge and discharge current: 200A for 10 seconds (2C)
• Charge voltage: 14.0V to 14.4V
• Float voltage: 13.5V
• End-of-discharge voltage: 11.2V
• Internal resistance: 2mΩ
• Self-discharge: 3% or less per month at 25°C
• Charge temperature: +5°C to +50°C
• Discharge temperature: -20°C to +50°C
• Storage temperature: -45°C to +70°C
• Humidity: 95% maximum, non-condensing
• Protection class: IP65
• Power connection: M8 threaded inserts and bolts
• BMS connection: male and female M8 circular connector cables, 50cm
• Required BMS: Lynx Smart BMS NG 500A or 1000A (M10), sold separately
• Dimensions (h × w × d): 235 × 197 × 160 mm
• Weight: 9 kg
• Cell standards: UL 1973, UL 9540A and IEC 62619
• EMC standards: EN 61000-6-2 and EN 61000-6-3
• Pending: IEC 62619 (battery), IEC 62620 and ECE R10-6

Compatibility note:

A Lynx Smart BMS NG (500A or 1000A, M10) is required and sold separately. Lithium NG batteries are not compatible with the Lithium Smart BMS range (VE.Bus BMS, SmallBMS or Smart BMS). If your batteries are spread out, M8 circular connector extension cables are available in 1m to 5m lengths.

The BMS gives a pre-alarm when any cell drops below 3.0V, disconnects the loads below 2.8V, and stops charging when a cell rises above 3.6V or the battery gets too hot or too cold. Up to 5 BMS units can be paralleled.

Installation note:

Charging is not possible below +5°C, so in unheated spaces plan for the battery to stay above that temperature when it needs to charge. The battery can be mounted upright or on its side, but never with the terminals facing down. Secure it with straps or mounting brackets, and size all cabling, fusing and charge settings for your installation.
