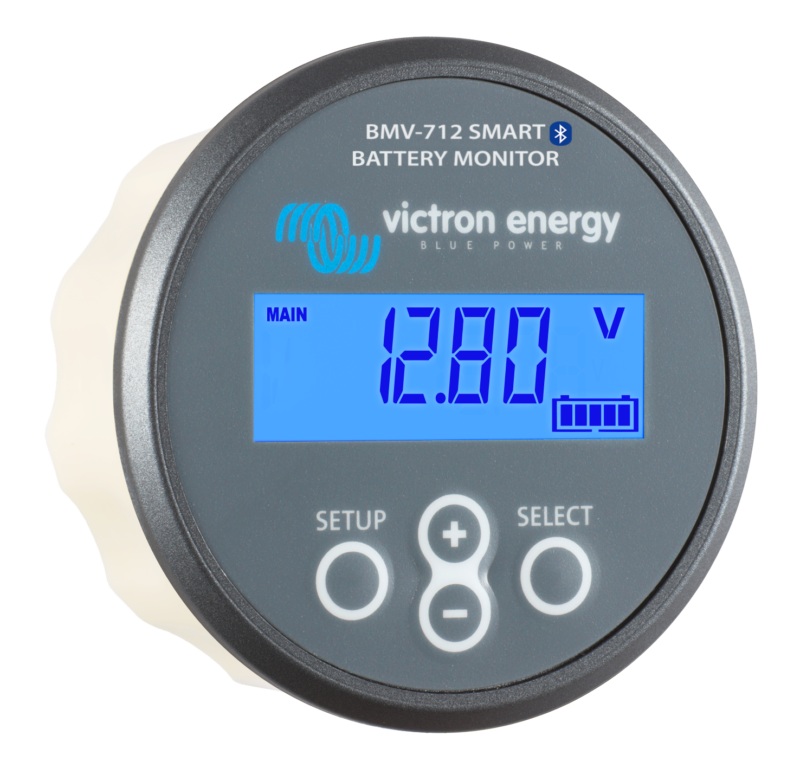

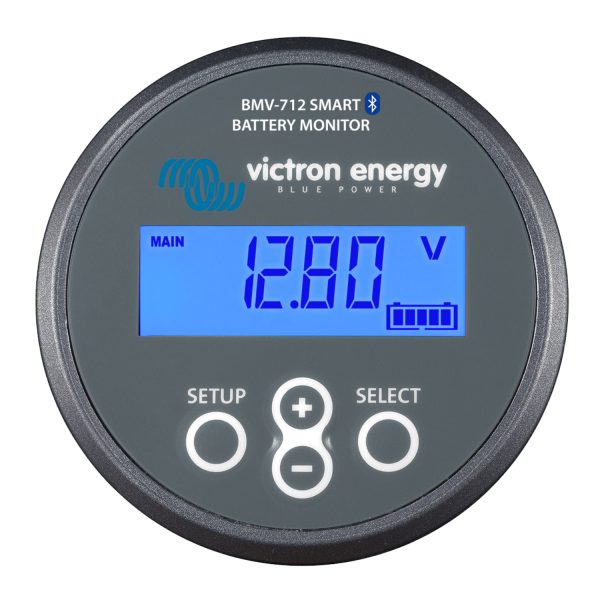

Victron BMV-712 Smart Battery Monitor with Bluetooth

The Victron BMV-712 Smart Battery Monitor provides detailed, real-time information about the condition and performance of your battery bank. Ideal for marine, RV, van and off-grid power systems, it measures battery voltage and current while calculating state of charge, consumed amp-hours and estimated time remaining.

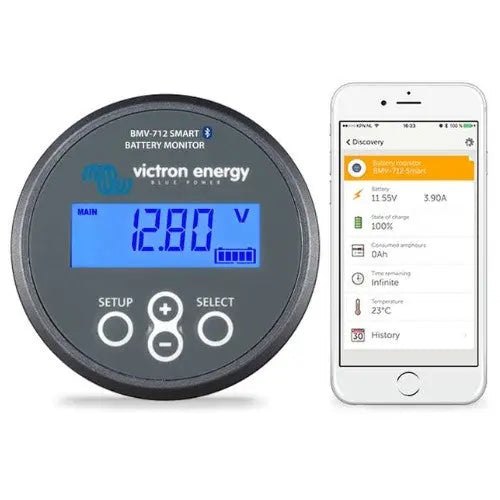

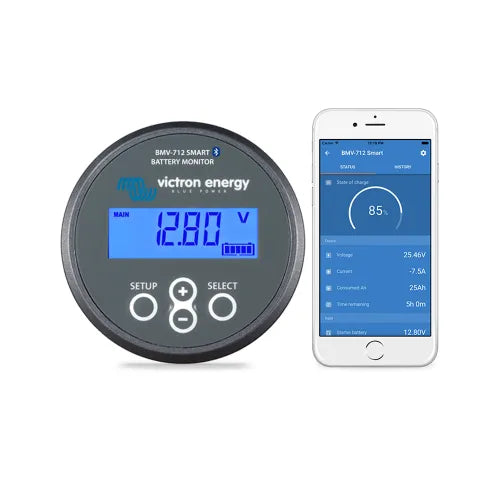

Built-in Bluetooth lets you monitor battery information, review historical data and configure settings through the VictronConnect app on a compatible phone or tablet. The integrated display and front-panel controls also provide convenient access to important battery data without requiring a mobile device.

The included 500A/50mV shunt accurately measures current flowing into and out of the battery. An auxiliary input can be configured to monitor the voltage of a second battery, battery-bank midpoint voltage or battery temperature when used with the optional Victron temperature sensor.

A programmable relay can be configured to control an alarm, generator or other external equipment based on battery conditions. The VE.Direct port also allows connection to compatible Victron GX devices for expanded local monitoring and remote access through the Victron Remote Management portal.

Features:

• Built-in Bluetooth connectivity
• Monitoring and configuration through VictronConnect
• Displays battery state of charge from 0% to 100%
• Measures battery voltage and current
• Tracks consumed amp-hours
• Calculates estimated time remaining
• Stores historical battery-performance data
• Included 500A/50mV shunt
• Auxiliary input for a second battery, midpoint voltage or optional temperature sensor
• Programmable alarm relay
• VE.Direct communication port
• Compatible with Victron GX monitoring devices
• Suitable for battery banks from 1Ah to 9,999Ah
• Low power consumption
• Flush-mount display

Specifications:

• Manufacturer: Victron Energy
• Model: BMV-712 Smart
• Victron article number/MPN: BAM030712000
• GTIN-13: 8719076037781
• Supply-voltage range: 6.5–70V DC
• Supported battery capacity: 1–9,999Ah
• Included shunt: 500A/50mV
• Current-measurement accuracy: ±0.4%
• Voltage-measurement accuracy: ±0.3%
• State-of-charge resolution: 0.1%
• Current resolution: 0.01A
• Voltage resolution: 0.01V
• Operating temperature: -40°C to 50°C
• Communication: Bluetooth and VE.Direct
• Programmable relay: 60V/1A
• Display installation: Flush mount
• Display-front diameter: 63 mm
• Display-body diameter: 52 mm
• Display-body depth: 31 mm
• Shunt terminal size: M10
• Display protection rating: IP55; not intended for outdoor installation

Included:

• BMV-712 Smart display
• 500A/50mV shunt
• 10-metre RJ12 communication cable
• Fused positive battery connection cables
• Square display bezel

Optional accessory:

The Victron temperature sensor is sold separately and is required to measure battery temperature. The auxiliary input can perform only one optional function at a time: second-battery voltage, midpoint voltage or temperature.
