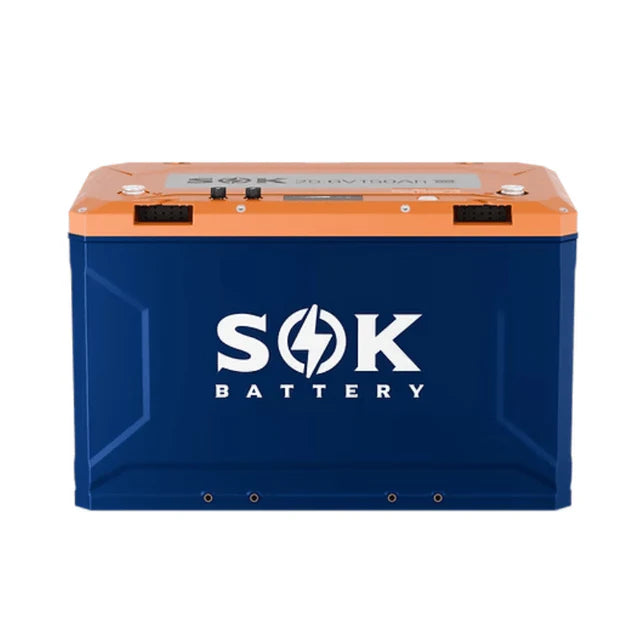

The SOK 24V 150Ah LiFePO4 Battery (SK24V150PH) delivers 3,840Wh of reliable lithium power for marine, RV, camper van, off-grid and backup power systems. Built for demanding installations, it combines a self-heating system, Bluetooth 5.1 monitoring, Victron CAN communication and an IP67-rated enclosure in one durable 24V battery.
With a 200A continuous discharge capability and integrated smart BMS, this SOK lithium battery is an excellent choice for larger inverter systems and high-demand electrical setups. It can also be connected in series or parallel when additional voltage or capacity is required.
Key Features
-
24V 150Ah LiFePO4: 25.6V nominal voltage and 3,840Wh of usable battery capacity for demanding electrical systems.
-
Built-In Self-Heating: Integrated heating helps support charging in cold-weather applications.
-
Victron CAN Communication: Designed for CAN communication with compatible Victron Energy equipment, including Cerbo GX-based systems.
-
Bluetooth 5.1 Monitoring: View battery information and monitor your system wirelessly from a compatible iOS or Android device.
-
200A Continuous Discharge: Supports high-demand loads with up to 200A continuous discharge and 500A peak discharge for up to 10 seconds.
-
IP67 Protection: Durable PC+ABS enclosure provides protection against water and dust for marine, RV and mobile applications.
-
Integrated Fire Suppression: Built-in gas aerosol fire suppression provides an additional layer of protection.
-
Expandable System Design: Connect up to 2 batteries in series for a 48V system or up to 10 batteries in parallel for increased capacity.
-
Integrated ON/OFF Switch: Convenient battery control with support for external alarm or relay connections.
Ideal for Marine, RV & Off-Grid Power
The SOK SK24V150PH is designed for applications where dependable, high-capacity lithium power is essential. Its combination of cold-weather capability, system monitoring and Victron integration makes it particularly well suited for:
-
Boats and marine electrical systems
-
Camper vans and van conversions
-
RVs and motorhomes
-
Cabins and off-grid properties
-
Solar energy storage
-
Backup power systems
-
Victron Energy electrical systems

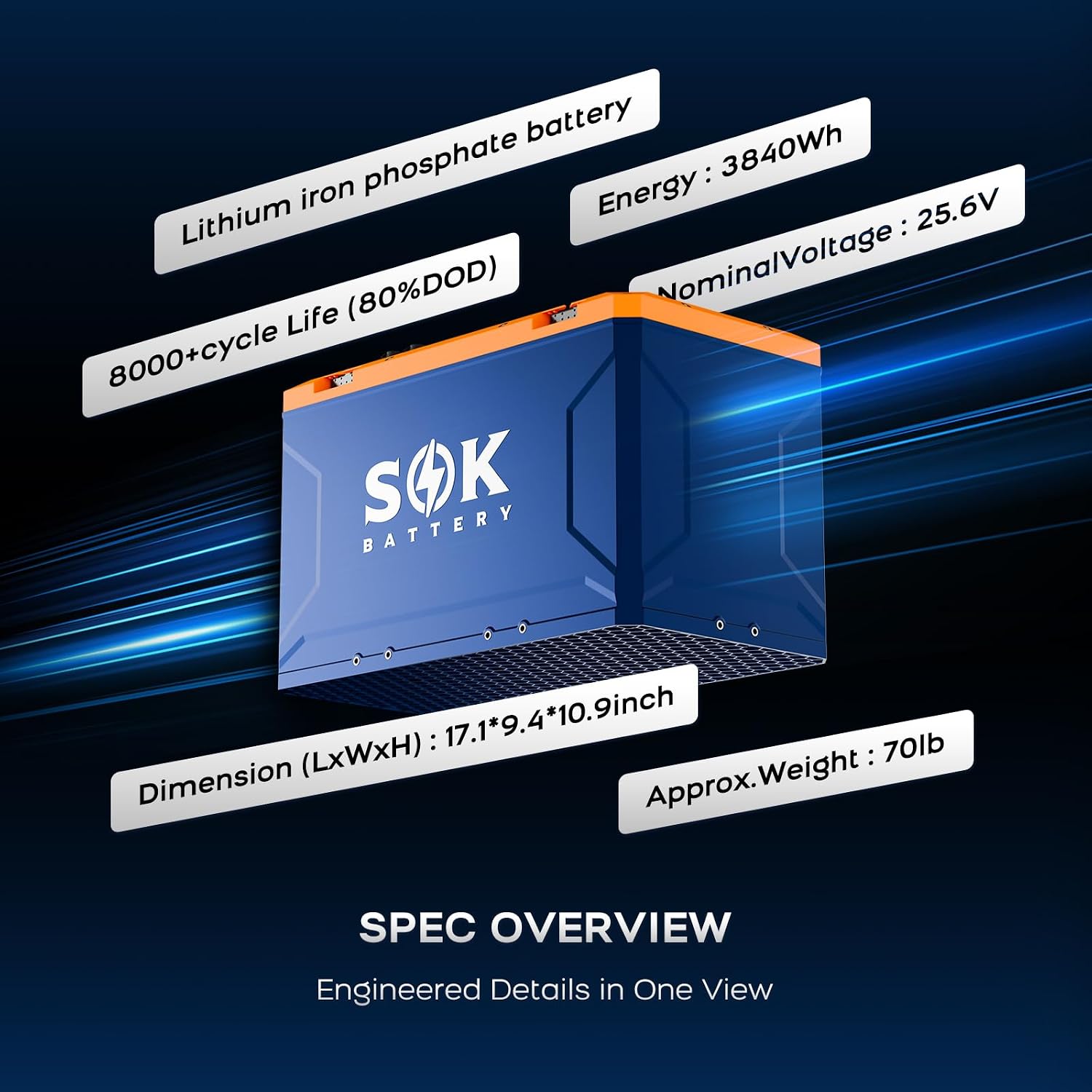

Technical Specifications
Model: SK24V150PH
Battery Chemistry: LiFePO4
Nominal Voltage: 25.6V
Nominal Capacity: 150Ah
Energy: 3,840Wh
Self-Discharge: <3% per month
Cell Specification: 3.2V 150Ah
Cell Cycle Life: 4,000+ cycles
Charging
Recommended Charge Current: 150A
Maximum Charge Current: 200A
Recommended Charge Voltage: <29.2V
BMS Charge Cut-Off Voltage: >30V or 3.8V per cell
Reconnect Voltage: <27.6V
Balancing Voltage: 3370mV and >20mV during charging
Discharging
Maximum Continuous Discharge: 200A
Peak Discharge: 500A for 10 seconds
Recommended Low-Voltage Disconnect: ≥21V
BMS Discharge Cut-Off Voltage: <20V
Reconnect Voltage: >24V
Short-Circuit Protection: 1200A / 300μs
System Expansion
Maximum Batteries in Series: 2
Maximum Batteries in Parallel: 10
Temperature Ratings
Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Charge Temperature: -4°F to 122°F (-20°C to 50°C), with integrated heating
Storage Temperature: 23°F to 95°F (-5°C to 35°C)
BMS High-Temperature Cut-Off: 167°F (75°C) discharge / 158°F (70°C) charge
Reconnect Temperature: 149°F (65°C) discharge / 140°F (60°C) charge
Mechanical Specifications
Dimensions: 17.1" × 9.4" × 10.9"
Approximate Weight: 70 lb
Terminal Type: M8
Terminal Torque: 80–100 in-lb (9–11 N·m)
Case Material: PC+ABS
Enclosure Protection: IP67
Compliance
Cell Certification: IEC 62619
Built for Victron-Powered Systems
For customers building a Victron Energy marine, RV, camper van or off-grid electrical system, the SK24V150PH provides high-capacity LiFePO4 storage with CAN communication and Bluetooth monitoring in a rugged, self-heating package.
Whether you're upgrading an existing battery bank or designing a new 24V electrical system, the SOK 150Ah 24V battery provides the capacity, discharge performance and monitoring features needed for serious mobile and off-grid power applications.
