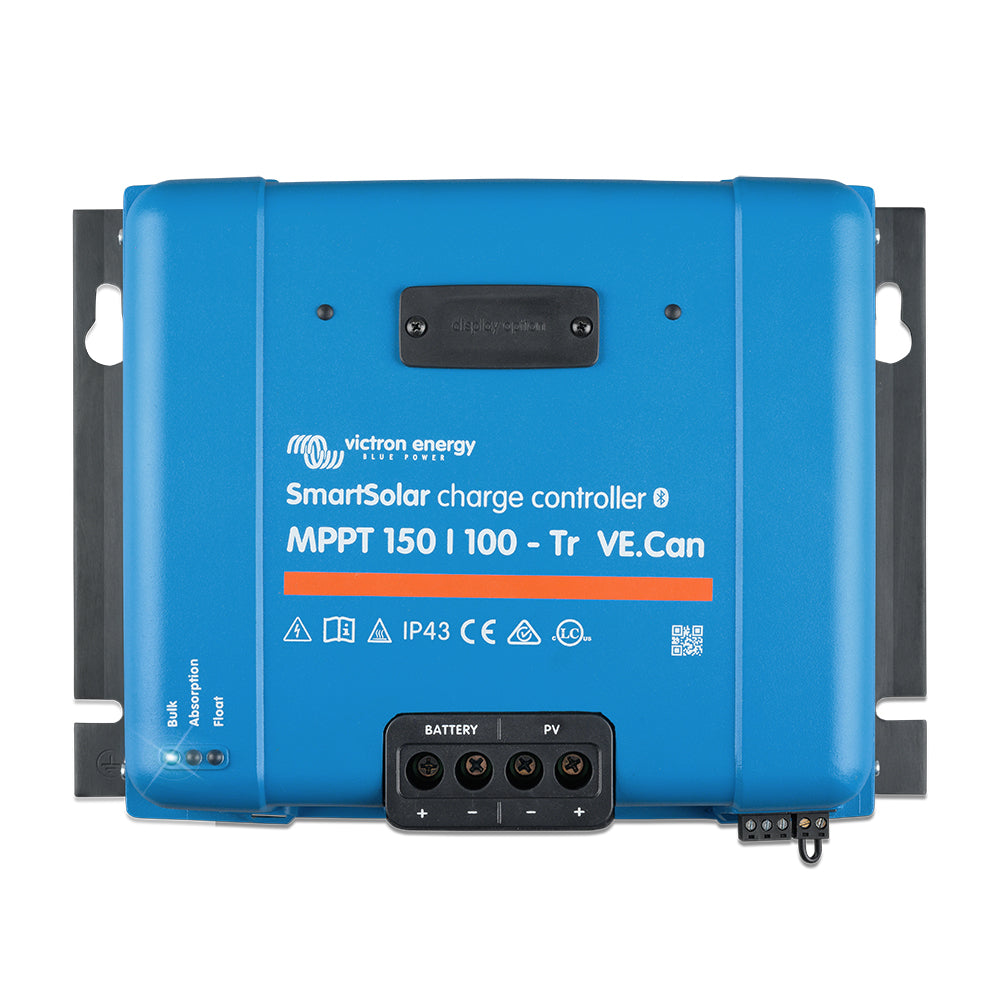

Victron SmartSolar MPPT 150/100-Tr VE.Can Solar Charge Controller (UL 1741)

The Victron SmartSolar MPPT 150/100-Tr VE.Can is a high-capacity solar charge controller designed to maximize energy production in marine, RV and off-grid power systems. Its ultra-fast Maximum Power Point Tracking technology continuously adjusts to changing sunlight conditions, helping the solar array generate as much usable charging power as possible.

With a maximum PV open-circuit voltage of 150V and up to 100A of charging current, this controller supports 12V, 24V, 36V and 48V battery systems. The Tr version uses screw terminals for secure PV connections and is suitable for large solar arrays with rated PV power of up to 5,800W on a 48V battery system.

Built-in Bluetooth provides convenient access to system data, settings and firmware updates through the VictronConnect app. VE.Can connectivity allows multiple compatible solar chargers and Victron devices to share one communication network, while a connected GX device enables local monitoring and remote access through the Victron Remote Management portal and VRM app.

An optional plug-in display can be added for convenient on-device monitoring and configuration. With advanced charging algorithms, flexible connectivity and comprehensive electronic protection, the SmartSolar MPPT 150/100-Tr VE.Can is a dependable choice for demanding solar installations.

This model is certified to UL 1741.

Features:

• Ultra-fast Maximum Power Point Tracking technology
• Maximum PV open-circuit voltage of 150V
• Maximum battery-charging current of 100A
• Supports 12V, 24V, 36V and 48V battery systems
• Built-in Bluetooth
• Configuration and monitoring through the VictronConnect app
• VE.Can communication
• VE.Direct communication port
• Screw-terminal PV connections
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal and VRM app
• Optional plug-in display support
• Programmable adaptive charging algorithm
• Protection against overheating, output short circuits and incorrect PV polarity
• Certified to UL 1741

Specifications:

• Manufacturer: Victron Energy
• Product: SmartSolar MPPT 150/100-Tr VE.Can
• Article number: SCC115110411
• Battery voltage: 12V, 24V, 36V or 48V
• Maximum charge current: 100A
• Maximum PV open-circuit voltage: 150V
• Rated PV power at 12V: 1,450W
• Rated PV power at 24V: 2,900W
• Rated PV power at 36V: 4,350W
• Rated PV power at 48V: 5,800W
• Maximum efficiency: 99%
• PV connection type: Screw terminals
• Communication: Bluetooth, VE.Can and VE.Direct
• Dimensions: 216 × 295 × 103 mm
• Weight: Approximately 4.5 kg
• Safety standard: Certified to UL 1741

Installation note:

The solar array’s maximum open-circuit voltage, including increases caused by cold temperatures, must remain below the controller’s 150V limit. The controller, wiring and circuit protection must be correctly sized for the installation.
