Simrad  |  SKU: 000-13336-001

SIMRAD NAC-3 Core Pack

$3,56860 CAD

Ships By Tue, May 5 Free Canada Shipping

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help

If something isn’t right, reach out and we’ll make it right.

Product details

NAC-3 Autopilot Core Pack
This pack includes the Simrad NAC-3 autopilot computer, RF25N rudder feedback unit, Precision-9 solid-state compass, plus all cabling and connectors required to build an NMEA 2000® network backbone or connect your autopilot system to an existing NMEA 2000® network. This pack is recommended for rudder-steered boats above 10 metres (35 feet) in length, and is suitable for use with high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves.

Multiple Control Options
Choose from a range of dedicated autopilot controllers, or control your autopilot from your existing Simrad multifunction display. Install extra autopilot stations, ideal for dual-helm vessels, or add the Simrad WR10 wireless remote for instant steering and autopilot control from anywhere on board.

Easy Installation and Setup
Industry-standard NMEA 2000® networking and NMEA 0183® input offer reliable connectivity to sensors, autopilot controllers, and multifunction displays located anywhere on board. Auto-tuning simplifies setup and ensures optimal steering performance, while automatic compass calibration continuously improves heading accuracy as you travel.

Minimum product requirements

Requires a hydraulic steering pump or mechanical drive unit, and a compatible autopilot controller or networked multifunction display.

Key Features

  • Core autopilot system components – just add a drive unit and controller
  • Ideal for rudder-steered boats above 10 metres (35 feet) in length
  • Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Take control with the Simrad AP44 Autopilot Controller, IS42 display and OP12 keypad, or a networked multifunction display
  • Easy setup with automatic tuning and compass calibration

What's in the box?

  • Precision-9 Compass

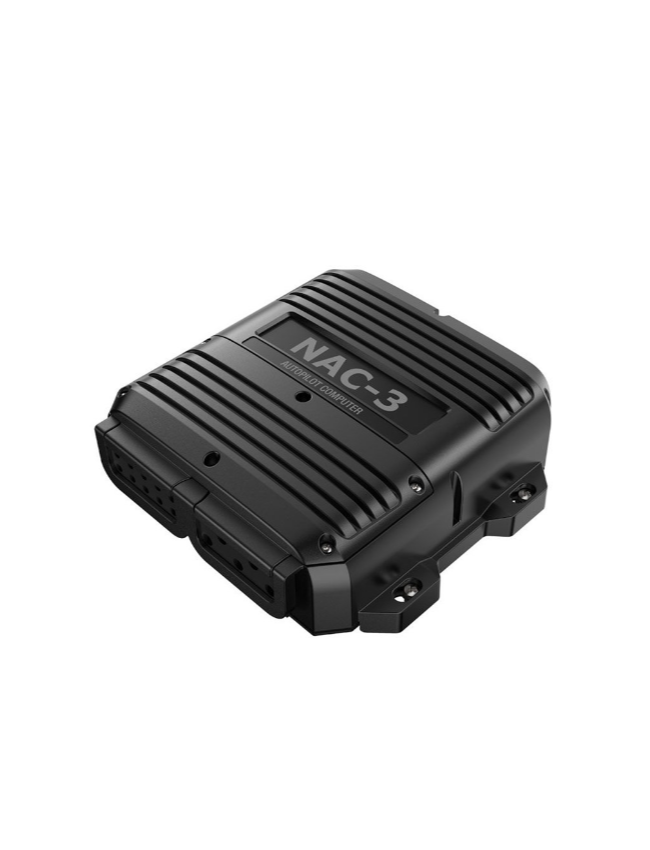

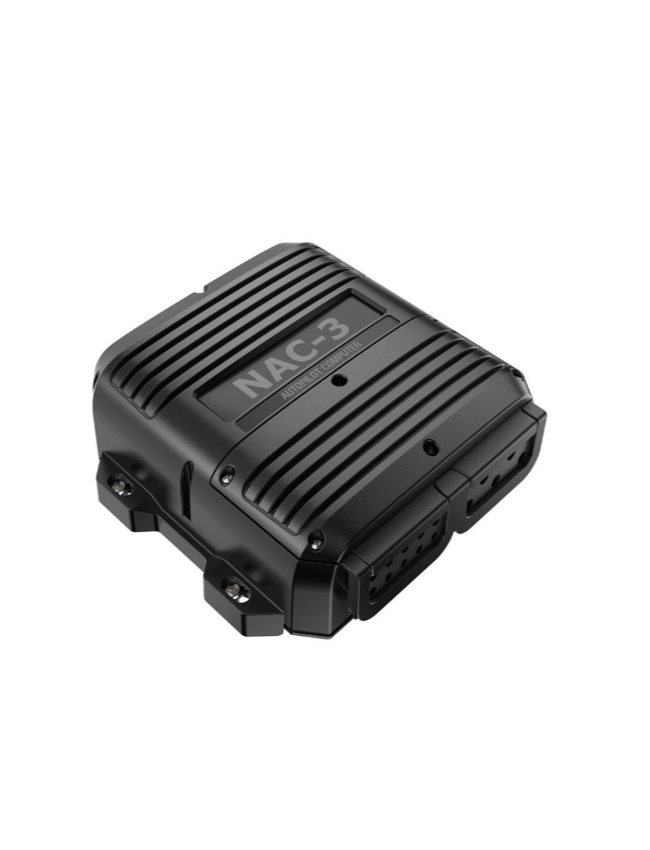

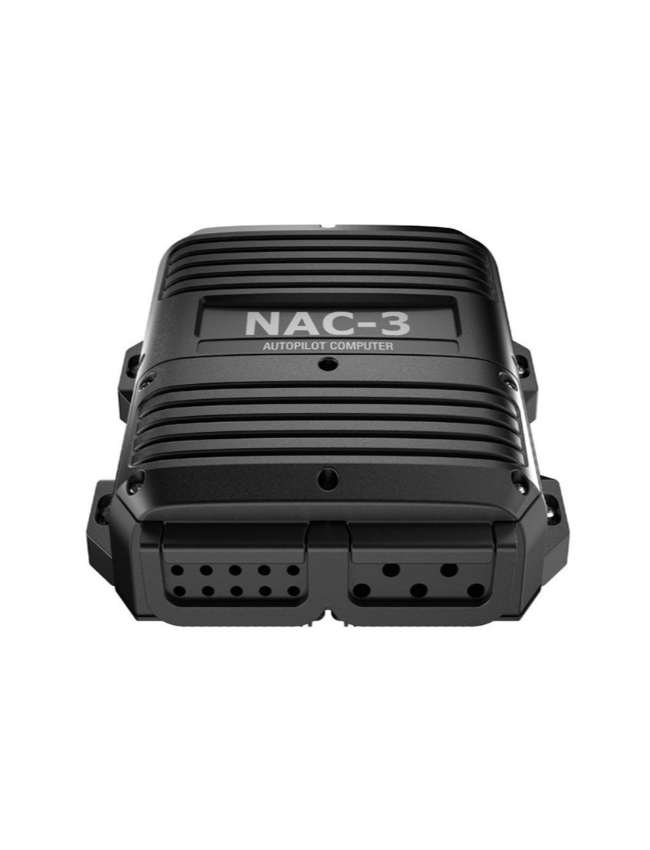

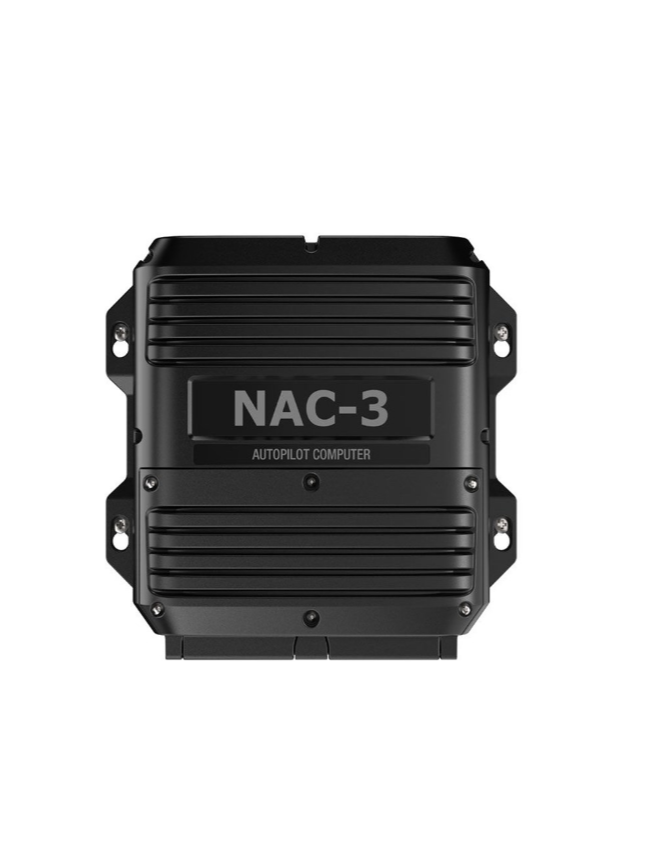

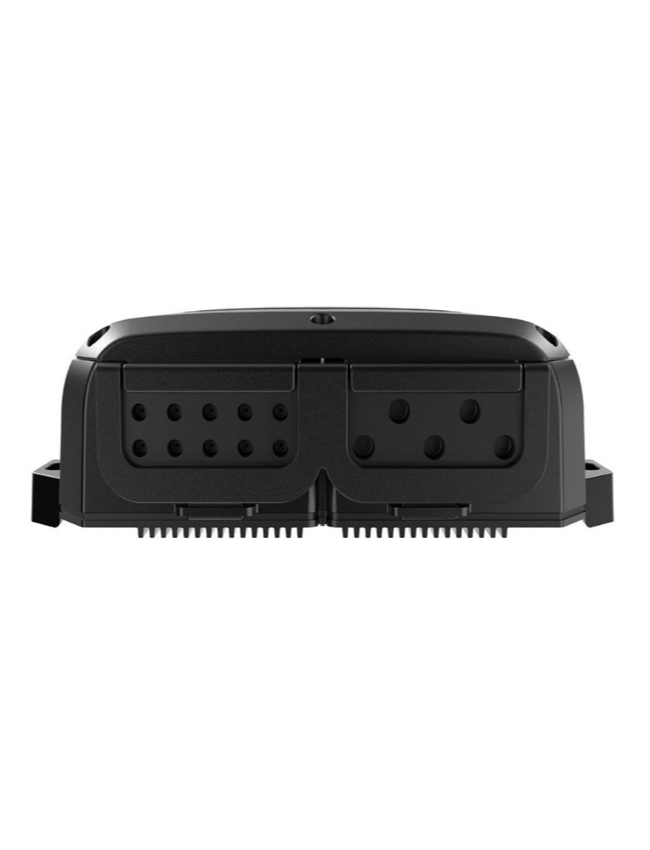

  • NAC-3 Autopilot Computer
  • Micro-C Backbone Kit
  • RF25N Rudder Reference Sensor with Micro-C connector
