Specifications
Display
Backlight Color - White
Display Resolution - 320 x 240, 4:3
Screen Brightness - 600 nits
Viewing Angles - 80° top/bottom, 80° left/right
Physical
Compass Safe - 300MM (11.8")
Dimensions W x H x D - 118 x 115 x 48.5mm (4.6 x 4.5 x 1.9")
Mounting Type - Flush
Weight - 0.32 kg (0.7 lbs)
Electrical
Power Consumption max - 1.8W
Power Consumption typical - 1.35W
Supply Voltage - 12V DC (10.8-15.6V DC)
Environment
Humidity - Up to 100% RH
Operating Temperature Range - -25° to +65ºC (-13°F to +149 ºF)
Storage Temperature Range - -40° to +85ºC (-40°F to +185 ºF)
Waterproofrating - IPx7
Connectivity
NMEA 2000 Connectivity - 1 X NMEA2000 Micro-C port 3 LEN
Autopilot
Compasssensor support - NMEA 2000
Engine Drive systems integration - Volvo EVC, Yamaha, Optimus(Seastar)

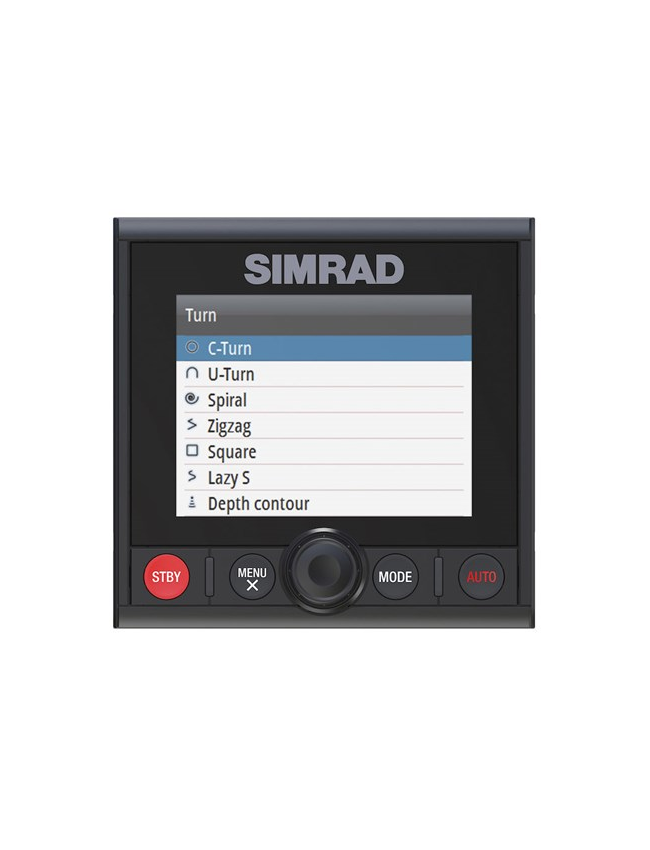

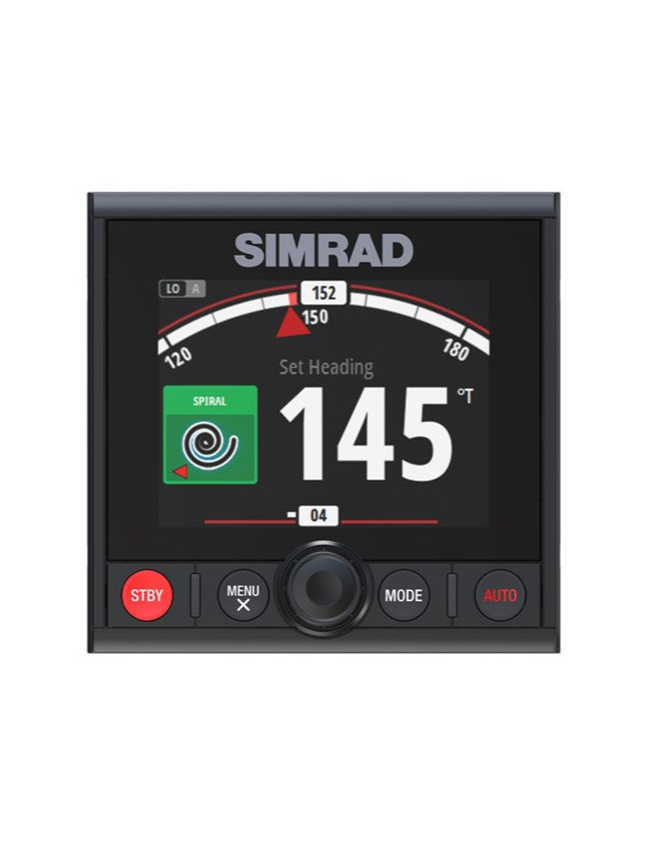

Manouevres Turn Patterns - C-turn, U-turn, Spiral, Zigzag, Square, S-turn, Depth countertracking, Tack, Gybe
Steering Modes - Heading, No drift, Waypoint Steering(NAV), Wind, Power Steer(FU)
Approvals
Approvals Compliance - CE 60945
Other
Interface - Keypad and rotary dial
Languages - English(US), English(UK), Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Brazilian, Swedish, Afrikaans, Japanese, Korean, Simplified Chinese, Traditional Chinese, Bulgarian, Hebrew, Hungarian, Slovak, Russian, Ukrainian
Warranty Period - 2 years
