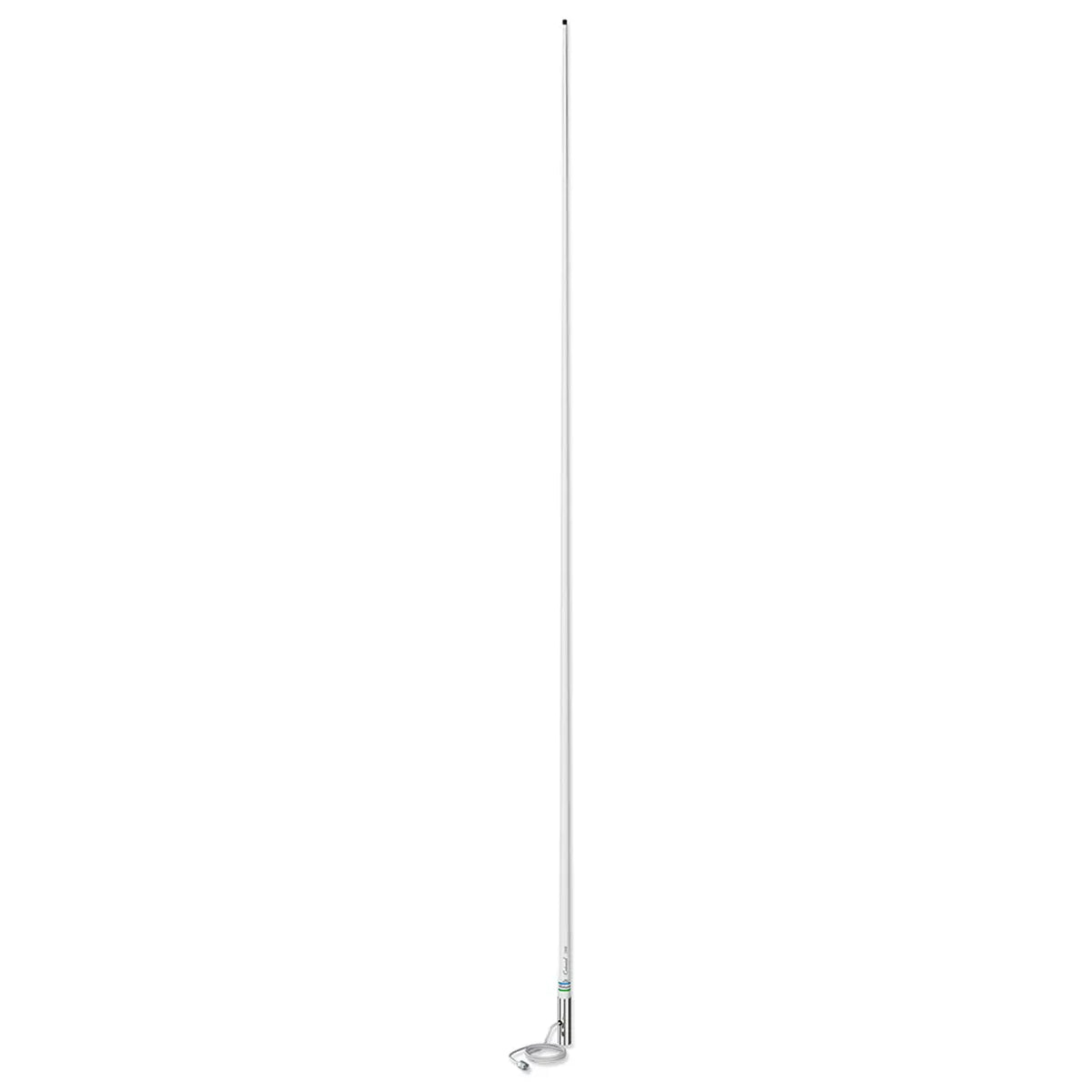

Shakespeare 5101 Classic VHF Antenna

$11899 CAD
No Free Shipping

  • Brand
    Shakespeare Marine
  • SKU:
    SHA-5101
  • Barcode:
    719441100490

Description


8' (2.4m) VHF Marine Band 6dB End-fed with matching stub A new standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8ft antenna with a brass element and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance, but superb value.
  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1in-14 thread
  • Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
  • Suggested mount: Style 4187 or 5187 Ratchet Mount
  • Smooth, durable, high gloss finish
  • One section
5101 Specifications
Band: VHF Marine Band
Antenna Gain: 6dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Chrome-plated brass
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259, not installed
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: Special - DC Grounded, but reads "open" on ohm meter
Shakespeare Limited Warranty: 2 years
5101-2
Shakespeare Marine

Shakespeare 5101 Classic VHF Antenna

$11899 CAD

8' (2.4m) VHF Marine Band 6dB End-fed with matching stub A new standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8ft antenna with a brass element and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance, but superb value.
5101 Specifications
Band: VHF Marine Band
Antenna Gain: 6dB
Max. Input Power: 50 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Chrome-plated brass
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259, not installed
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: Special - DC Grounded, but reads "open" on ohm meter
Shakespeare Limited Warranty: 2 years
