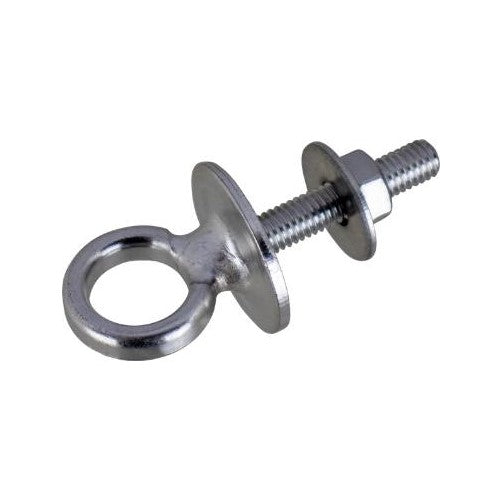

Seadog - Stainless Shoulder Eye Bolt

$2199 CAD
Size

  • Brand
    Seadog
  • SKU:
    SED-080463-1
  • Barcode:
    35514080149

Description

Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. These eye bolts feature metric threads and include a metric nut and washer.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. 080504 has a usable length of 3-15/16" although only 3-1/4" of the shaft is threaded. 080506 has a usable length of 6-5/16" although only 3-1/4" of the shaft is threaded. Constructed of corrosion resistant machined 304 stainless steel. These eye bolts feature metric threads and include a metric nut and washer.

Part # A B C D E B.S. (lb.)
080463 6 mm-1 mm 2-3/16" 1/2" 1-1/8" 1" 3,000
080466 6 mm-1 mm 3-3/8" 1/2" 2-5/16" 1" 3,000
080483 8 mm-1.25 mm 2-9/16" 9/16" 1-5/16" 1" 5,250
080488 8 mm-1.25 mm 4-5/16" 5/8" 3" 1" 5,250
080495 10 mm-1.50 mm 3-3/8" 5/8" 1-15/16" 1-3/16" 8,950
080499 10 mm-1.50 mm 5-3/8" 5/8" 3-15/16" 1-3/16" 8,950
080504 12 mm-1.75 mm 5-1/2" 3/4" 3-15/16" 1-3/16" 10,100
080506 12 mm-1.75 mm 7-7/8" 3/4" 6-5/16" 1-3/16" 10,100
should eye bolt
Seadog

Seadog - Stainless Shoulder Eye Bolt

From $1439 CAD $2399

Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. These eye bolts feature metric threads and include a metric nut and washer.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. 080504 has a usable length of 3-15/16" although only 3-1/4" of the shaft is threaded. 080506 has a usable length of 6-5/16" although only 3-1/4" of the shaft is threaded. Constructed of corrosion resistant machined 304 stainless steel. These eye bolts feature metric threads and include a metric nut and washer.

Part # A B C D E B.S. (lb.)
080463 6 mm-1 mm 2-3/16" 1/2" 1-1/8" 1" 3,000
080466 6 mm-1 mm 3-3/8" 1/2" 2-5/16" 1" 3,000
080483 8 mm-1.25 mm 2-9/16" 9/16" 1-5/16" 1" 5,250
080488 8 mm-1.25 mm 4-5/16" 5/8" 3" 1" 5,250
080495 10 mm-1.50 mm 3-3/8" 5/8" 1-15/16" 1-3/16" 8,950
080499 10 mm-1.50 mm 5-3/8" 5/8" 3-15/16" 1-3/16" 8,950
080504 12 mm-1.75 mm 5-1/2" 3/4" 3-15/16" 1-3/16" 10,100
080506 12 mm-1.75 mm 7-7/8" 3/4" 6-5/16" 1-3/16" 10,100

Size

  • 1/4" x 1 3/16"
  • 1/4" x 2 3/8"
  • 5/16" x 1 3/8"
  • 5/16" x 3 1/4"
View product
