Seadog Polarized Molded Electrical Connector
$1399 CAD
Unit price
/
Unavailable
Seadog Polarized Molded Electrical Connector features Bakelite and neoprene body, brass polarized pins for secure 12/24VDC connections, preventing reverse polarity.
Seadog Polarized Molded Electrical Connector - 1-1/4" / 2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
-
BrandSeadog
-
SKU:SED-426162-1
-
Barcode:
Seadog Polarized Molded Electrical Connector
From
$1399 CAD
Unit price
/
Unavailable
Description
Description

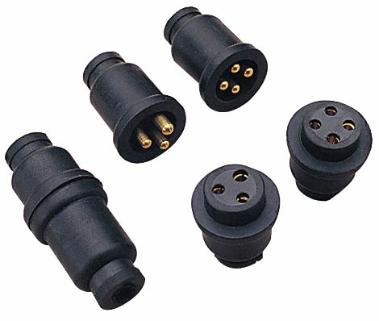

The Polarized Molded Electrical Connector is constructed of a molded Bakelite and neoprene body with machined brass polarized pins. Pins are sized differently, ensuring only one way to connect the plug, avoiding reverse polarity issues. 3-5A. 12/24VDC. 14 Ga. wire Max. Wire attaches with brass set screws.
| Bulk | Display | Pin | A | B | Amps | Weight | Std. Pack |
|---|---|---|---|---|---|---|---|
| 426162 | 426162-1 | 2 | 1-1/4" | 1-3/16" | 3 | .06 | 10 ea |
| 426163 | 426163-1 | 3 | 1-1/4" | 1-3/16" | 4 | .07 | 10 ea |
