Seadog - Galvanized Shoulder Eye Bolt

$319 CAD
Size

  • Brand
    Seadog
  • SKU:
    SED-080812
  • Barcode:
    910000007476

Description

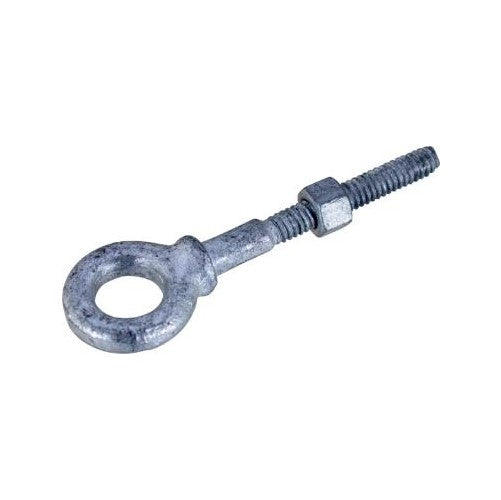

Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
Part # A B C D E
080812 1/4"-20 NC 2" 1/2" 3-1/16" 9/16"
080822 5/16"-18 NC 2-5/16" 9/16" 3-9/16" 5/8"
080832 3/8"-16 NC 2-7/16" 11/16" 3-15/16" 11/16"
080834 3/8"-16 NC 4-1/2" 11/16" 6-1/16" 11/16"
080843 1/2"-13 NC 3-1/4" 15/16" 5-1/8" 1"
080846 1/2"-13 NC 5-7/8" 15/16" 7-13/16" 1"
080854 5/8"-11 NC 4-1/8" 1-1/4" 6-9/16" 1-1/4"
080856 5/8"-11 NC 6" 1-1/4" 8-5/16" 1-1/4"
080864 3/4"-10 NC 4-3/8" 1-7/16" 7-3/8" 1-1/2"
080866 3/4"-10 NC 6-1/16" 1-7/16" 9" 1-1/2"
galvanized eye bolt
Seadog

Seadog - Galvanized Shoulder Eye Bolt

From $319 CAD
Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
Part # A B C D E
080812 1/4"-20 NC 2" 1/2" 3-1/16" 9/16"
080822 5/16"-18 NC 2-5/16" 9/16" 3-9/16" 5/8"
080832 3/8"-16 NC 2-7/16" 11/16" 3-15/16" 11/16"
080834 3/8"-16 NC 4-1/2" 11/16" 6-1/16" 11/16"
080843 1/2"-13 NC 3-1/4" 15/16" 5-1/8" 1"
080846 1/2"-13 NC 5-7/8" 15/16" 7-13/16" 1"
080854 5/8"-11 NC 4-1/8" 1-1/4" 6-9/16" 1-1/4"
080856 5/8"-11 NC 6" 1-1/4" 8-5/16" 1-1/4"
080864 3/4"-10 NC 4-3/8" 1-7/16" 7-3/8" 1-1/2"
080866 3/4"-10 NC 6-1/16" 1-7/16" 9" 1-1/2"
