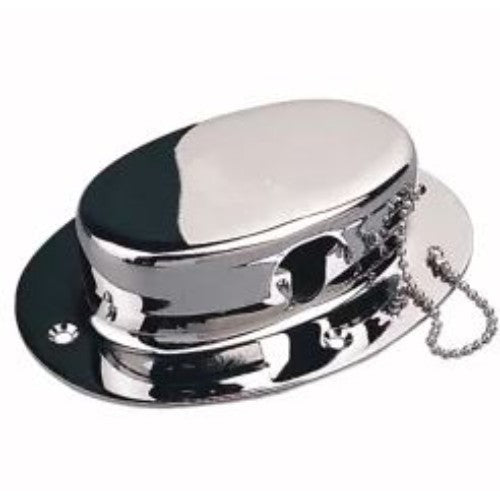

Seadog 322070 Chrome Plated Brass Chain Deck Pipe with Chain

The Sea-Dog Chain Deck Pipe provides a clean and professional solution for routing anchor chain and rode below deck while helping reduce clutter and trip hazards on deck. Constructed from forged brass with a polished chrome-plated finish, this deck pipe offers excellent durability and corrosion resistance for marine environments.

The oval opening is designed to accommodate large thimbles, shackles, anchor chain, and line combinations up to 1" diameter, allowing smooth passage through the deck while maintaining a neat appearance. A tethered cover with retaining chain helps keep the opening protected when not in use, preventing water intrusion and debris accumulation.

Ideal for sailboats, cruisers, yachts, and powerboats with below-deck anchor locker systems.

Features

• Forged brass construction with polished chrome-plated finish
• Designed for anchor chain and rode storage below deck
• Helps reduce deck clutter and trip hazards
• Oval opening accommodates large thimbles and shackles
• Accepts line up to 1" diameter
• Tethered cover with retaining chain
• Corrosion-resistant marine-grade construction
• Ideal for anchor locker installations
• Professional flush-mounted appearance

Specifications

• Part Number: 322070
• Material: Chrome-plated forged brass
• Maximum Line Size: 1"
• Length (B): 4-1/2"
• Overall Length (C): 6-1/4"
• Height (D): 2-5/16"
• Opening Length (E): 4"
• Fastener Size: #8 Flat Head (not included)

Sea-Dog Chain Deck Pipe FAQ

What is a chain deck pipe used for?

A chain deck pipe allows anchor chain and rode to pass through the deck into an anchor locker, helping keep decks clear and organized.

What size line can this deck pipe accommodate?

This model is designed to accommodate anchor line up to 1" in diameter along with shackles and thimbles.

What material is the deck pipe made from?

The Sea-Dog 322070 is constructed from forged brass with a corrosion-resistant chrome-plated finish.

Does the cover stay attached to the deck pipe?

Yes. The cover is secured with a retaining chain to help prevent accidental loss.

Can this be used in saltwater environments?

Yes. The chrome-plated forged brass construction is designed for long-term use in marine environments.

Are mounting fasteners included?

No. Mounting hardware is sold separately. The deck pipe installs using four #8 flat head fasteners.
