Raymarine  |  SKU: T70416

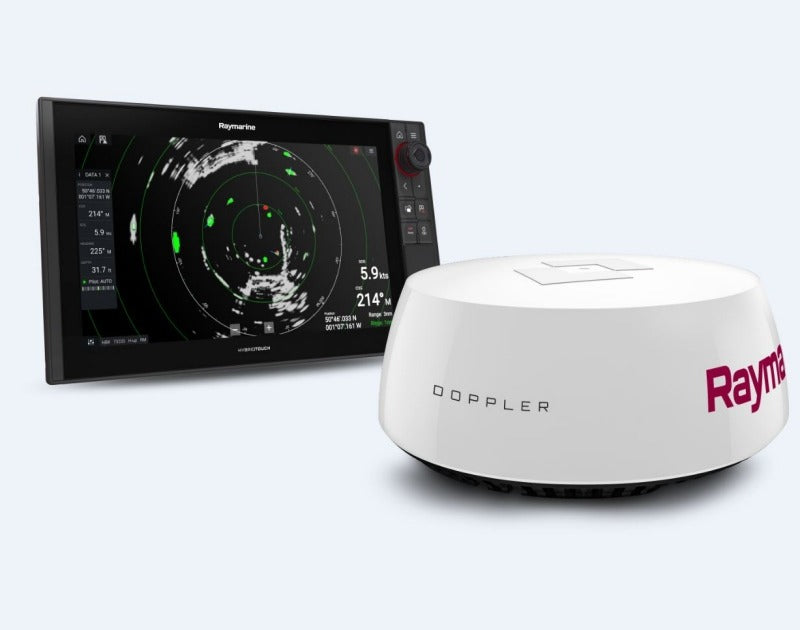

Raymarine Quantum 2 Q24D Doppler Radar with 10m Power and Data Cables White T70416

$3,688.99 CAD

Ships By Fri, October 16 Free Canada Shipping

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items

✔ Manufacturer warranties supported

✔ In-store support available if you need help

Some items are non-returnable. Please review our full Return & Refund Policy before completing your purchase.

Raymarine Quantum 2 Q24D Doppler Radar with 10m Power and Data Cables T70416 White

Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology.

Quantum 2 next-generation CHIRP pulse compression radar provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and colour codes them to indicate whether they are inbound or outbound.

Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas

Quantum 2 MARPA mode provides superior collision avoidance and an effective means of dangerous target tracking. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.

This product is compatible only with Raymarine multifunction displays running LightHouse™ 3 software, version 3.4 or later: Axiom, Axiom Pro, Axiom Pro-S, Axiom XL and eS and gS Displays. (NOTE: The Element does not utilize LightHouse 3 software.)

How Doppler Radar Works:

  • Microwave energy waves are bounced off of a distant target, just like conventional radar.
  • Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.
  • For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the target's range decreases.
  • For outbound targets, the frequency drops as the returning echoes spread out as its range increases.
  • Doppler radars are engineered to detect these small shifts in wave frequency and use them to classify moving radar targets.
Doppler Target Processing:
    • Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.

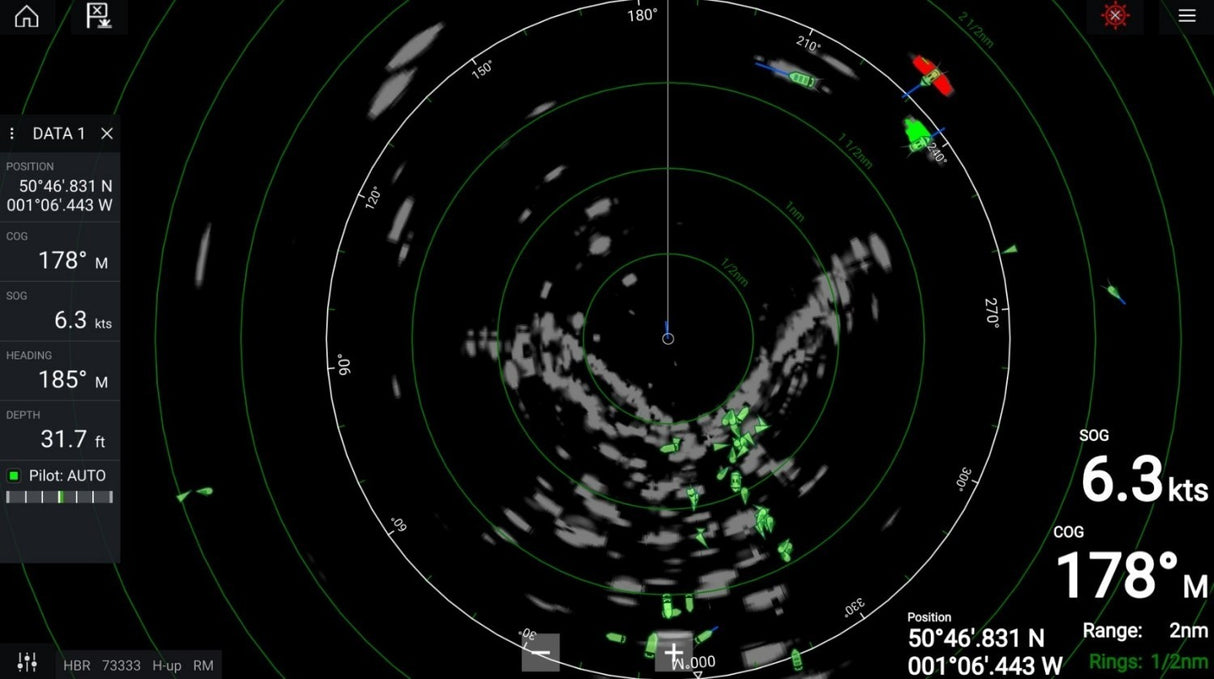

    • Quantum 2 then uniquely colour codes moving targets to indicate whether they are getting closer, or moving away.
      • Inbound targets are coloured red.
      • Outbound targets are coloured green.
Colour-coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.

Quantum 2 also features fully automatic target acquisition and tracking. Configure custom safety or alarm zones and be alerted to new radar contacts entering the zone.

Quantum 2 can begin tracking those contacts automatically, calculating their course, speed, closest point of approach and more. You'll be alerted to dangerous contacts with audible alerts and easy-to-understand on-screen graphics.

Quantum 2 also features Raymarine's new True Trails target history display. The True Trails features enable you to see a historical "wake" behind every moving contact.

This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.

Like every Raymarine Quantum system, you'll also benefit from a rugged and lightweight design that is super-easy to install.

Quantum 2 has very low power consumption making it especially friendly to vessels running exclusively on battery power. Quantum 2 with Doppler can be installed in a traditional wired configuration, or use its built-in Wi-Fi technology to connect it to your Raymarine MFD.

The Quantum 2 with Doppler truly sets the standard for on the water safety and collision avoidance.
  • Doppler moving target display allows for superior situational awareness at-a-glance
  • Fully automatic ARPA target tracking, along with manual MARPA mode
  • Adjustable TrueTrails target history shows the motion history of moving contacts
  • 24-mile range for early detection of traffic, navigation aids, landfall and weather
  • Immediate awareness - Quantum starts up and is ready to go in seconds
  • Superior interference rejection eliminates noise from other radars
  • Simplified installation with Wi-Fi or thin wire network connectivity
  • Easy upgrade - Quantum 2 fits the same bolt pattern as other Raymarine scanners
  • Lightweight and easy to install - Quantum weighs up to 50% less than comparable magnetron radars
  • Safe emissions - mount Quantum anywhere onboard
  • Low power consumption for extended battery life under sail
In the Box:
  • Quantum 2 Radome Q24D
  • 10 m (32.8') Power cable A80309
  • 10 m (32.8') Date Cable A80275
  • M8 mounting bolts with spring washers and flat washers
  • Documentation pack (including mounting template)
