Navico (Simrad, Lowrance & B&G)  |  SKU: 000-12607-001

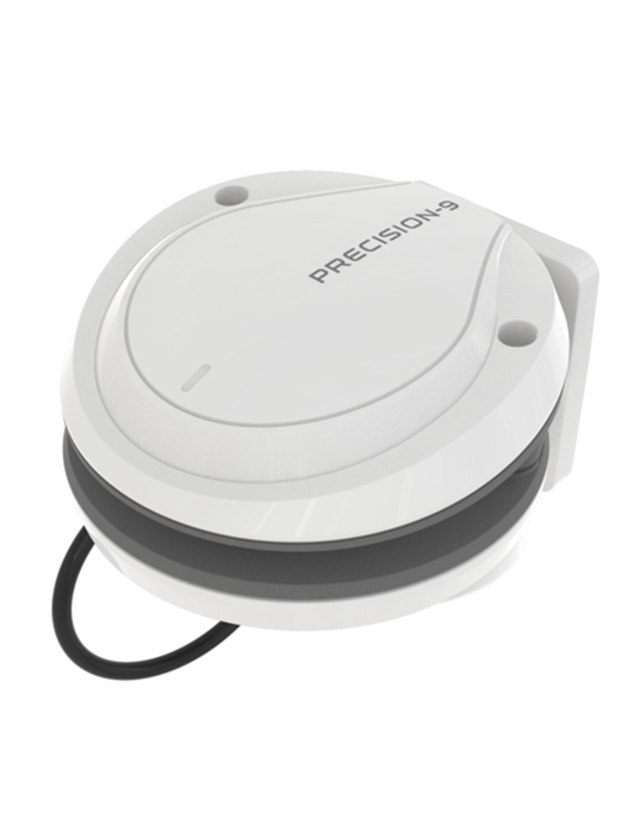

Navico Precision-9 Compass

$1,013.60 CAD

Ships By Thu, July 9 Free Canada Shipping

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help

If something isn’t right, reach out and we’ll make it right.

Product details

Solid-state compass with heading, rate of turn, pitch and roll output over NMEA 2000. The Precision-9 Compass supplies accurate heading and rate-of-turn information to Lowrance autopilot, radar and navigation systems over an NMEA 2000 connection. With an internal array of solid-state sensors constantly measuring motion and orientation on nine axes, the Precision-9 also provides pitch and roll data to compatible equipment. An easily adjustable mounting bracket and single-cable connection allow simple installation aboard any vessel, including up-mast mounting suitable for steel hulls.

Key Features

  • Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000®
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof for external up-mast mounting on steel hulled vessels
  • Simple installation with a single NMEA 2000® connection

Specifications

Connectivity
N2K PG Ns - 127250, 127251, 127257, 127252
NMEA 2000 Connectivity - 1x NMEA 2000 Micro-C port, 1 LEN
Approvals
Approvals Compliance - CE under EMC directive 2014/30/EU
Electrical
Power Consumption max - 0.4W (N2K Load 1 len)
Supply Voltage - 12V DC (8-16V DC) via NMEA2000
Environment
Operating Temperature Range - -25 to + 65ºC (-13 to + 149ºF)
Storage Temperature Range - -30 to + 70ºC (-22 to + 158ºF)
Waterproofrating - IPx7
Heading Sensor
Heading Sensor Accuracy - +/-2deg. After calibration
Heading Sensor Data Available - Magnetic heading, rate of turn, pitch/roll, heave
Sensor Type - Solid state, rate stabilized
Physical
Compass Safe - 500mm (1,7")
Dimensions W x H x D - 36 x 119 x 119mm (1.42 x 4.69 x 4.69")
Mounting Type - Bracket, Bulkhead
Weight - 0.165kg + 0.130kg(bracket)
Other
Warranty Period - 2 Years

What's in the box?

  • N2K-T-RD Network T-Connector
  • N2KEXT-15RD 15ft Network Extension Cable
