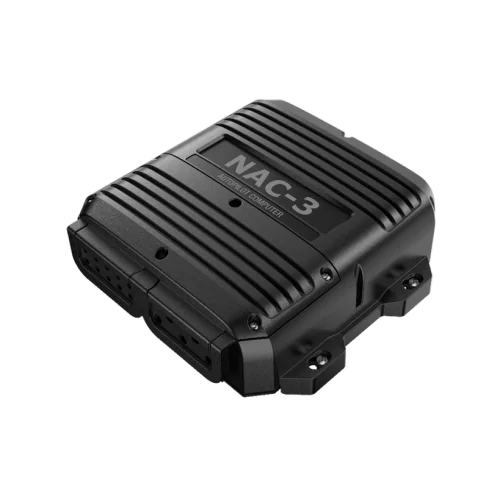

Navico NAC-3 autopilot computer 000-13250-001

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10 metres (33 feet) or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

• B&G Reflex Sailing algorithms
• 12/24V input 30A continuous output (50A peak)
• 3A Clutch output
• NMEA 0183 Interface (1 input, 1 output)
• Solenoid output capable
• Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Freq. Rudder -Feedback (RF300)
• Solenoid output capable for larger vessels
• Connection for NFU Remotes
• External Mode input, External open/close or pulse contact for SYSTEM SELECT
• External alarm output for buzzer/relay
