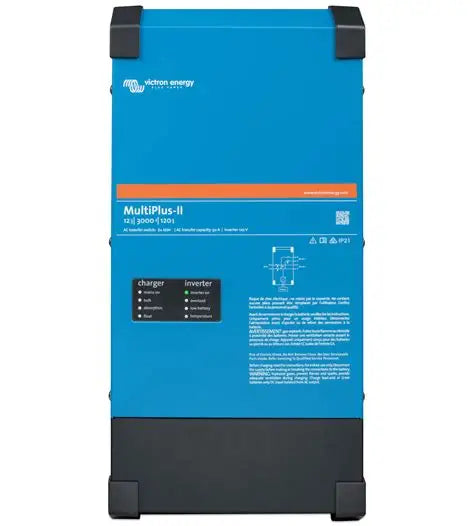

Victron MultiPlus-II 12/3000/120-50 2x120V Inverter Charger (UL 458)

The Victron MultiPlus-II 12/3000/120-50 2x120V is an all-in-one inverter and battery charger designed for North American 50A 120/240V split-phase electrical systems. Ideal for RVs, boats and mobile power installations, it combines a 3000VA pure sine wave inverter, 120A adaptive battery charger and 50A AC transfer capability.

When connected to a 120/240V split-phase shore-power or generator source, the MultiPlus-II can pass both incoming lines through to the electrical panel. When connected to a single-phase 120V source, it supplies 120V to both sides of the panel. This makes it a practical one-box solution for vehicles and boats that may connect to different AC power sources.

When shore or generator power is unavailable, the inverter automatically supplies 120V power to both L1 and L2. Because both lines are connected in phase during inverter operation, 240V equipment will only operate while a suitable 120/240V split-phase AC source is connected. This prevents high-demand 240V appliances from unintentionally draining the battery bank.

PowerControl and PowerAssist help manage limited shore or generator capacity. The MultiPlus-II can reduce battery-charging output when AC demand increases and supplement the available source with battery power when additional output is required.

VE.Bus communication allows the MultiPlus-II to integrate with compatible Victron GX devices for local and remote system monitoring. With a GX device connected to the internet, users can view system performance and supported controls through the Victron Remote Management portal and VRM app.

This model supports compatible lithium iron phosphate and lead-acid battery systems and is certified to UL 458.

Features:

• Designed for North American 50A 120/240V split-phase systems
• 3000VA pure sine wave inverter
• 120A adaptive battery charger
• 50A AC transfer capability
• Two 120V AC output lines
• Accepts split-phase 120/240V or single-phase 120V AC input
• Supplies both sides of the panel with 120V during inverter operation
• PowerControl and PowerAssist technology
• Fast automatic transfer when incoming AC power is interrupted
• Two AC outputs for essential and non-essential loads
• VE.Bus communication
• Compatible with Victron GX monitoring devices
• Remote monitoring through the VRM Portal and VRM app
• Parallel and three-phase capability for supported VE.Bus systems
• Compatible with LiFePO4 and other common battery technologies
• Certified to UL 458

Specifications:

• Manufacturer: Victron Energy
• Product: MultiPlus-II 2x120V inverter/charger
• Article number: PMP122305102
• Battery voltage: 12V DC
• Inverter capacity: 3000VA
• Continuous inverter output: 2400W at 25°C
• AC inverter output: 120V
• AC input: 120/240V split phase or 120V single phase
• Battery charger output: 120A
• Transfer capacity: 50A
• Output waveform: Pure sine wave
• Communication: VE.Bus
• Dimensions: Approximately 578 × 277 × 148 mm
• Weight: Approximately 22 kg
• Safety standard: Certified to UL 458

Important 2x120V operating note:

This model does not produce 240V from the battery during inverter operation. It supplies 120V to both L1 and L2 in phase. A compatible 120/240V split-phase shore-power or generator source must be connected for 240V loads to operate.

Installation note:

This inverter/charger must be properly sized, wired, configured and protected for the intended electrical system. Installation by a qualified marine or electrical technician is recommended.
