Victron Energy  |  SKU: VEN-LYN040102100

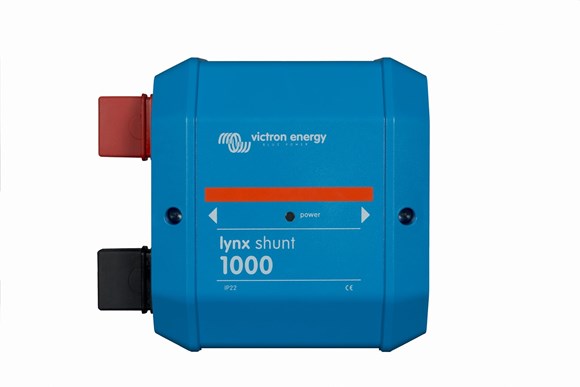

Lynx Shunt VE.Can (M8)

$485.02 CAD

Lynx Shunt VE.Can (M8) is available as a special order — we’ll order it directly from our supplier when you place your order.

Special order — shipping time varies Free Canada Shipping

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items

✔ Manufacturer warranties supported

✔ In-store support available if you need help

Some items are non-returnable. Please review our full Return & Refund Policy before completing your purchase.

Busbar Integrated Battery Monitoring

The Lynx Shunt VE.Can is a positive and negative busbar, battery monitor and a fuse holder for the main system fuse. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device, like the Cerbo GX. The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, that are used when connecting to a GX device. The Lynx Shunt VE.Can is designed to hold a ANL/ANN fuse. The fuse needs to be purchased separately. For more info see section Fusing in the Lynx Shunt VE.Can manual.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. The Lynx Distribution System consist of the following parts:

• Lynx Power In - A positive and negative busbar with 4 connections for batteries or DC equipment.

• Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring.

• Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

• Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal.

Specifications:

Voltage Range: 9-70Vdc

Supported System Voltages: 12, 24 or 48V

Reverse Polarity Protection: No

Current Rating: 1000A continuous

Power Consumption: 60mA @ 12V / 33mA @ 24V / 20mA @ 48V

Busbar Connections: M8

VE.Can: RJ45 and RJ45 terminator

Power Supply Connection to Lynx Distributor: RJ10 (a RJ10 cable ships with each Lynx Distributor)

Temperature Sensor Connection: Screw terminal

Relay Connection: Screw terminal

Enclosure Material: ABS

Enclosure Dimensions (h x w x d): 7.5 x 6.7 x 3.2 in (190 x 180 x 80 mm)

Unit Weight: 3.1 lbs (1.4 kg)

Busbar Material: Tinned copper

Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)

Protection Class: IP22
