Lofrans  |  SKU: LO-PX2C10125

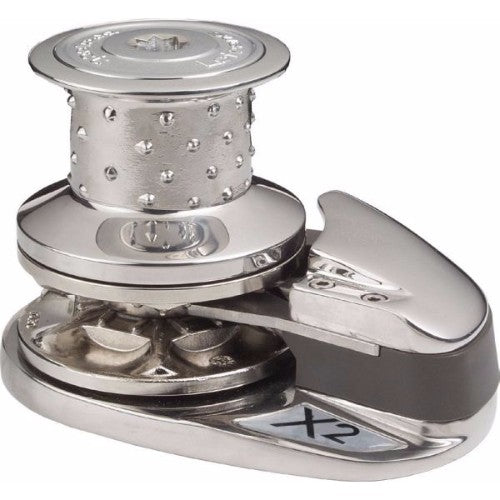

Lofrans Project X2 Windlass Capstan 1000W 12V

$2,829.00 CAD

No Free Shipping
Ships By Thu, July 9

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help

If something isn’t right, reach out and we’ll make it right.

The main shaft is in stainless AISI 431 with a high mechanical strength.
  • Motor: 1000 Watt
  • Gypsy Chain Size: 5/16" HT or 3/8" HT
  • Rope Size: 9/16"-5/8" or 5/8"-3/4"
  • Haulage Speed: 59-79ft /min (18-24 m/min)
  • Current Draw: 70-110 Amp (1000 Watt 12 Volt)
  • Maximum Pull: 950 Kg (2090 lb) - 1000 Watt
  • Weight: 20 Kg (44 lb)
Lofrans Windlass Features
  • The main shaft is in stainless AISI 431 with a high mechanical strength.
  • The body of the windlass, the drum and various components are made in a special aluminum alloy, polished and anodized.
  • The worm-wheel is in alloy bronze - worm is in 38NCD4 steel.
  • Screws and outer components are in stainless AISI 304 or AISI 316.
  • The Lofrans gearbox is made for high mechanical efficiency and designed for marine use.
  • The gearbox ratio from 1/50 up to 1/75 is the right compromise between performance and speed.
  • The long life oil bath lubrification protects the internal components of the gearbox from wear and tear and reduces the noise.
  • The gear case is black anodized for long-life protection.
  • The Lofrans electric motors are manufactured to IP 56 degree of protection (DIN 40 050) - protection against deckwater
  • Shaft, screws, nuts and cover made in stainless steel
  • Electric motor case protected by a black paint.
  • Most of Lofrans electric motors are series-wound. They have the advantage over the less expensive permanent magnet motors to produce an initial starting torque which can be useful in critical situations.
