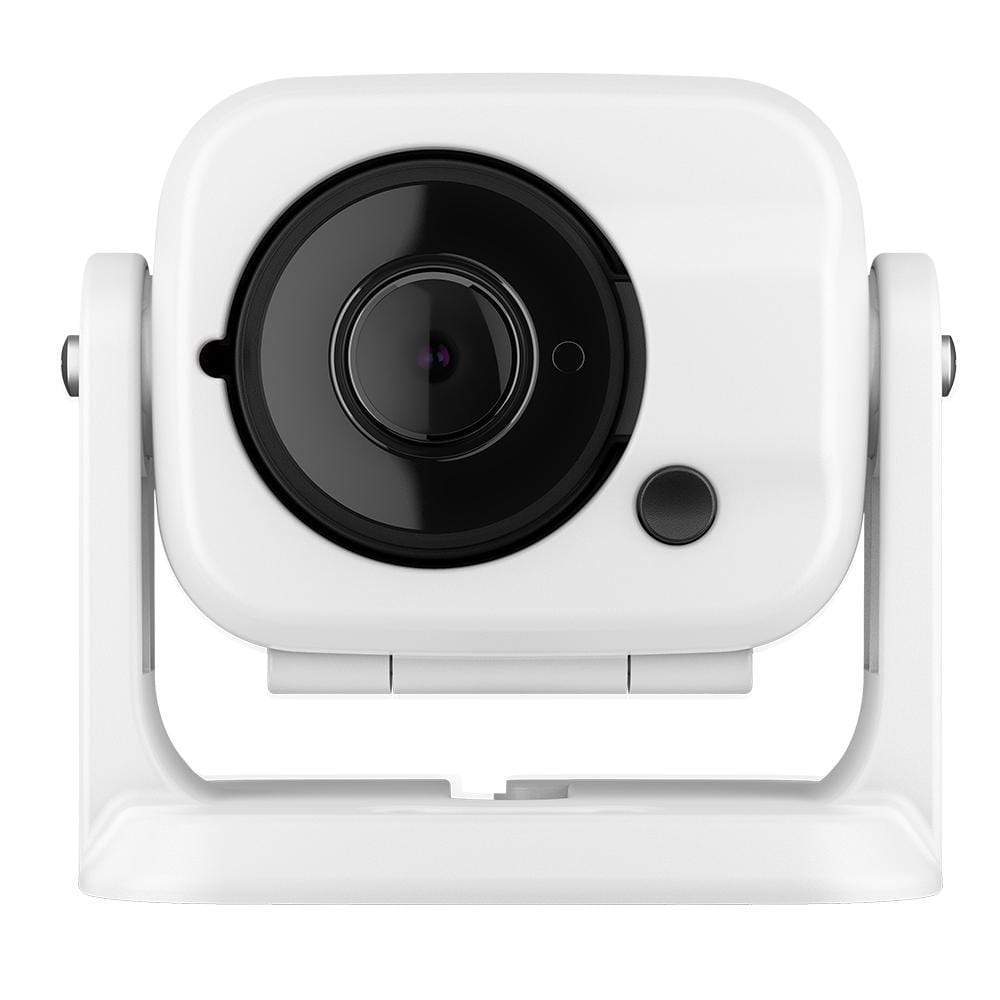

Garmin GC 100 Wireless Camera - 010-01865-30

The Garmin GC 100 Wireless Camera is a compact marine camera that wirelessly streams 720p HD video directly to compatible Garmin chartplotters, giving reliable monitoring for engine rooms, bilges, cockpits and decks. Designed for marine use, the GC 100 delivers night-vision capability, a very wide 183° field of view and IPX7 waterproof protection so you can keep an eye on critical areas from the helm.

Key Features

• Wireless Streaming: Built-in Wi‑Fi streams H.264 video to compatible Garmin chartplotters and any chartplotter on the same network.
• Night Vision: Integrated 940 nm IR LEDs provide illumination up to 3 meters for low-light and engine-room monitoring.
• Wide Angle & HD: 183° diagonal view with 1280 x 720 (720p) resolution for clear situational awareness.
• Rugged & Weatherproof: IPX7-rated housing and a secure mount for near-deck and below-deck installations.
• Simple Installation: Hardwired 10–30 Vdc power with one-button setup; includes protective case, screw-down mount and 10 m IPX7 power cable.

Garmin built the GC 100 for practical onboard monitoring: you can pair up to seven cameras on a single network and view feeds from up to four simultaneously, making it suitable for multi-station vessels, commercial craft, and recreational boats. The compact, durable design improves safety, security and situational awareness without taking up valuable space.

Specification highlights include 720p HD resolution, wide 183° viewing angle, IR night vision up to 3 m, and hardwired 10–30 Vdc power. Packaged dimensions are approximately 7 x 7 x 4 inches and the packaged weight is about 1.5 lb. Compatible with Garmin chartplotters that support the GC 100 camera feed; check your chartplotter model for compatibility details.
