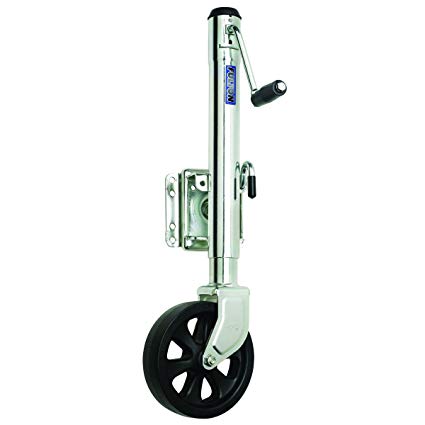

Fulton Swivel Jack XP15

Ideal for marine and recreational use. Convenient, spring-loaded, plunger-pin swivel feature. 1500 lbs capacity.
With corrosion-resistant zinc plating, a durable, poly wheel base and 15-1/2" retracted height, this swivel jack is perfect for marine and other recreational applications. Measures 12-1/2" from mounting bracket to top of jack

Features:

• Ideal for marine and recreational use
• Convenient, spring-loaded, plunger-pin swivel feature
  • Swing up to stow parallel to tongue for travel
  • Move back into upright position for use
• Z-Max 600 zinc finish provides superior corrosion resistance
  • 600-Hour salt spray rating
• Bolt-Thru mount provides minimum deflection and maximum support
  • 3-D Formed, heavy-gauge steel stampings
  • Proprietary bushing material
• Heavy-gauge steel construction
• Sidewind design
• Thermoplastic wheel and mounting bracket included

Specs:

• Application: 3" x 3" or 3" x 4" trailer frames
• Bracket height:
  • 15-1/2" Retracted
  • 25-1/2" Extended
• Lift: 10"
• Clearance: 12-1/2" from mounting bracket to top of jack
• Inner tube diameter: 2"
• Outer tube diameter: 2-1/4"
• Pull pin diameter: 1/2"
• Wheel diameter: 8"
• Lift capacity: 1,500 lbs
• Uses an 8 pitch acme screw
  • Takes 8 turns of the handle to raise or lower the jack an inch
• Limited 5-year warranty
