Blue Sea - Standard Battery Switches

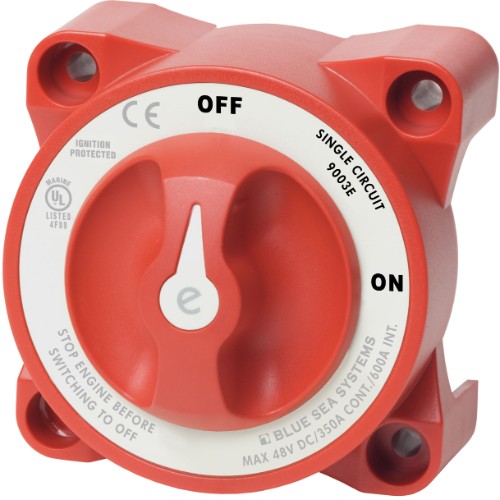

The E Series Blue Sea Battery Switch is a simple ON/OFF switch for a single circuit requiring high power output, reliability and low heat generation. It offers a 350A Continuous Rating for small inboard gasoline or diesel engines. Features include:

• Ignition protected - Safe for installation aboard gasoline powered boats
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting
• Accepts up to 4/0 battery cables
• Fits all Perko and Guest low amperage battery switch hole patterns
• Luminous label for low light reading
• 7/8 stud length to accept multiple cable terminals
• 3/8" M10 Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches
• Maximum 48 Volts DC
• Approx 4" x 4" footprint
• Overall Size 3.85" sq, 3.09 deep
