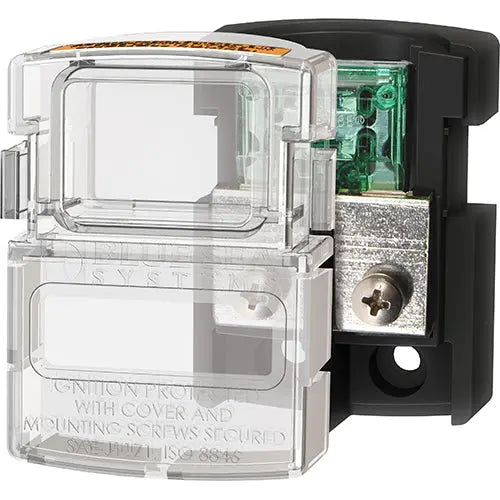

Blue Sea - Maxi Fuse Block

$4299 CAD

  • Brand
    Blue Sea Systems
  • SKU:
    BSS-5006100
  • Barcode:
    632085500610

Description

MAXI Fuse Block - 30 to 80A
  • Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
  • Cover breakouts allow wires from sides or bottom
  • Terminal screws compress fuse blades within blocks for low resistance connections
  • Ignition Protected
  • Label recess accepts large format label
  • Fuses sold separately
Specifications
Maximum Amperage 80A
Maximum Voltage 32V DC
Mounting #10 Screws
Screw Terminal Torque 25 in-lb (2.82 Nm)
Wire Size 14 - 4 AWG
Weight 0.25lb (0.11 kg)
BSS-5006100
Blue Sea Systems

Blue Sea - Maxi Fuse Block

$4299 CAD
MAXI Fuse Block - 30 to 80A
Specifications
Maximum Amperage 80A
Maximum Voltage 32V DC
Mounting #10 Screws
Screw Terminal Torque 25 in-lb (2.82 Nm)
Wire Size 14 - 4 AWG
Weight 0.25lb (0.11 kg)
