Blue Sea Systems | SKU:
BSS-5511E

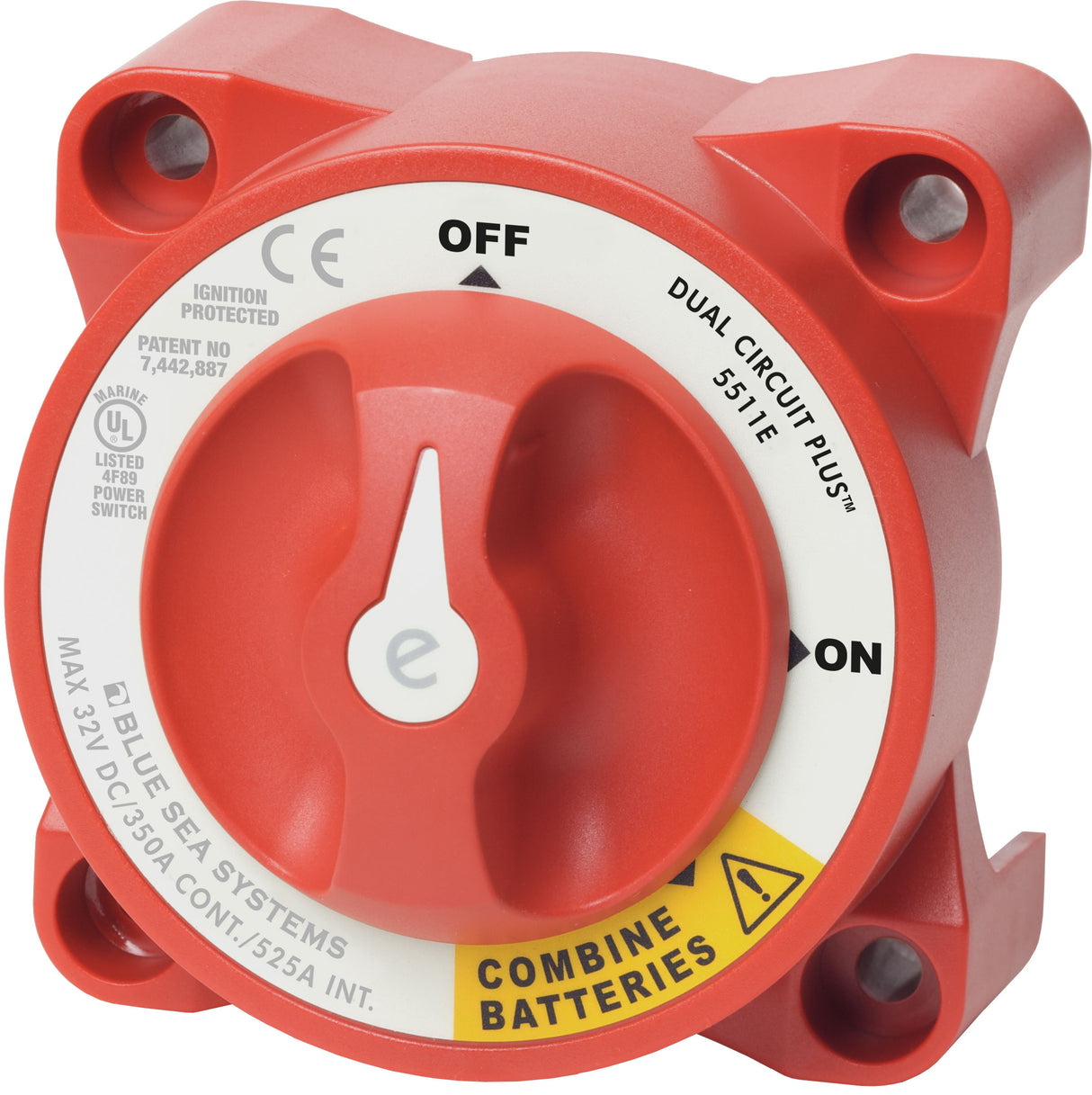

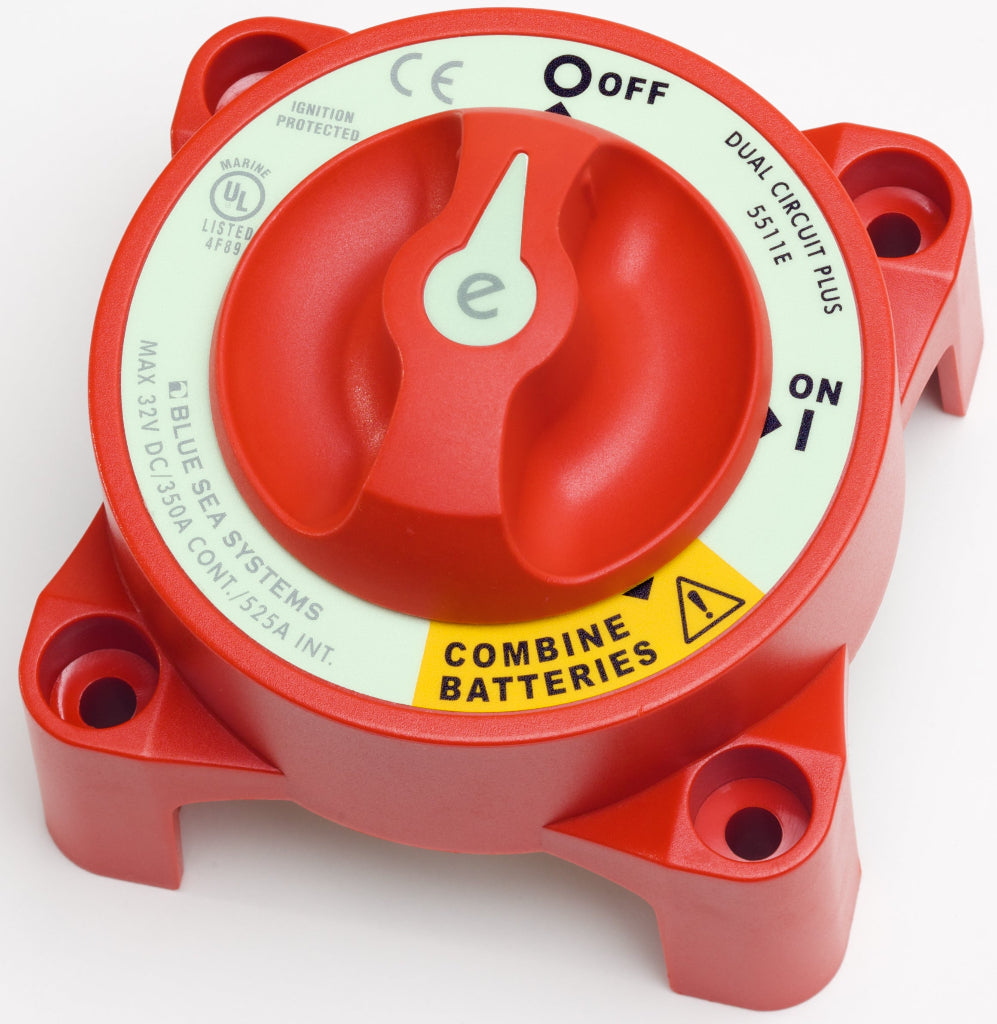

Blue Sea e-Series Dual Circuit Plus Battery Switch
Regular price
$109.99 CAD
Unit price
/
Unavailable
Blue Sea e-Series Dual Circuit Plus Battery Switch is in stock and available for pickup within 24hrs.
Ships By Tue, December 2
Free
Canada Shipping over $120
Pickup available at Nanaimo Store
Usually ready in 24 hours
Blue Sea e-Series Dual Circuit Plus Battery Switch
Regular price
$109.99 CAD
Unit price
/
Unavailable
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make-before-break contact design allows switching without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
| Specifications | |
|---|---|
| Switch Type | Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 525A (5 min) |
| Cranking Rating 30 sec | 700A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept 1/4" (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.16lb (0.53 kg) |
| Weight | 1.30lb (0.59 kg) |
| Resources | |
-
BrandBlue Sea Systems
-
SKUBSS-5511E
-
TypeBattery Switches
-
Barcode632085551155
