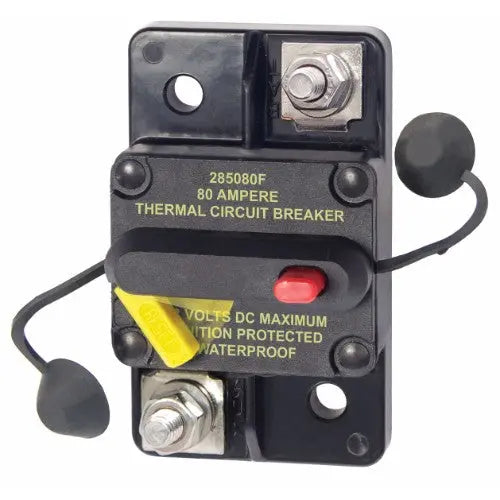

Blue Sea - Circuit Breaker DC Thermal 285 Series - Surface Mount

$8699 CAD
AMPS

  • Brand
    Native
  • SKU:
    BSS-7181
  • Barcode:
    632085000000

Description

This surface mountable (no mounting panel required) circuit breaker combines switching and circuit breaker functions into one unit.
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip
Specifications
  • Case Material Phenolic
  • Circuit Breaker Class Type III - Switchable/Manual Reset - Trip Free
  • Weight Lb (Kg) 0.30 (0.14)
  • Interrupt Rating 3,000 Amperes DC
  • Terminal Stud Torque 70 in-lb
  • Maximum Voltage Rating 42 Volts DC
  • Circuit Breaker Type Thermally responsive bi-metal blade
  • Operating Temperature Range -25C to +82C
Harbour Chandler Marine Supplies | BLUE SEA THERMAL CIRCUIT BREAKER - SURFACE MOUNT
Native

Blue Sea - Circuit Breaker DC Thermal 285 Series - Surface Mount

From $8699 CAD
This surface mountable (no mounting panel required) circuit breaker combines switching and circuit breaker functions into one unit.
Specifications

AMPS

  • 25 Amp
  • 30 Amp
  • 40 Amp
  • 60 Amp
  • 70 Amp
  • 80 Amp
  • 100 Amp
  • 120 Amp
  • 150 Amp
