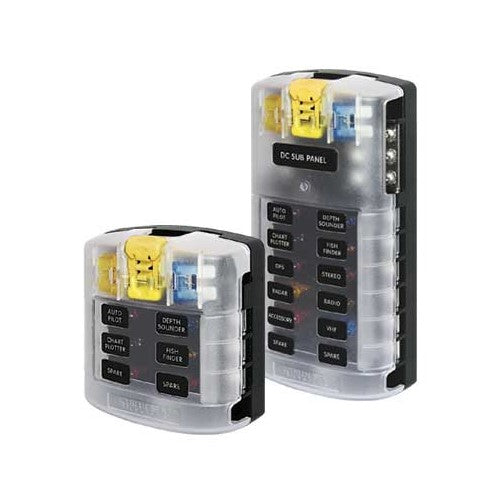

Blue Sea - ATO/ATC Fuse Blocks
$7199 CAD
Unit price
/
Unavailable
Blue Sea - ATO/ATC Fuse Blocks - 6 Circuit with cover is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
-
BrandBlue Sea Systems
-
SKU:BSS-5028
-
Barcode:
-
Size6 Circuit with cover, 6 Circuit with Ground and Cover, 12 Circuit with cover, 12 Circuit with Ground and Cover
Blue Sea - ATO/ATC Fuse Blocks
From
$7199 CAD
Unit price
/
Unavailable
Description
Description
Consolidates branch circuits and in-line fuses
- Clear insulating cover with label recesses for standard Blue Sea Systems labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses
- Tin-plated copper buses and Beryllium copper fuse clips give full 30 Ampere rating per circuit
- Stores spare fuses
- Uses ATO Fuses
- Comes with or without negative bus
| Description | A | B | C | ||
| BLUESEA | 5025 | ATO FUSE BLOCK 6-CIR.W/GROUND | 3.315" | 4.894" | 3.881" |
| BLUESEA | 5026 | ATO FUSE BLOCK 12-CIR.W/GROUND | 3.315" | 6.472" | 5.459" |
| BLUESEA | 5028 | ATO FUSE BLOCK 6-CIRCUIT | 3.315" | 3.652" | 2.639" |
| BLUESEA | 5029 | ATO FUSE BLOCK 12-CIRCUIT | 3.315" | 5.230" | 4.217" |
| BLUESEA | 5033 | ATO-FUSE 6 CIRCUIT NO COVER | 3.315" | 3.652" | 2.639" |
