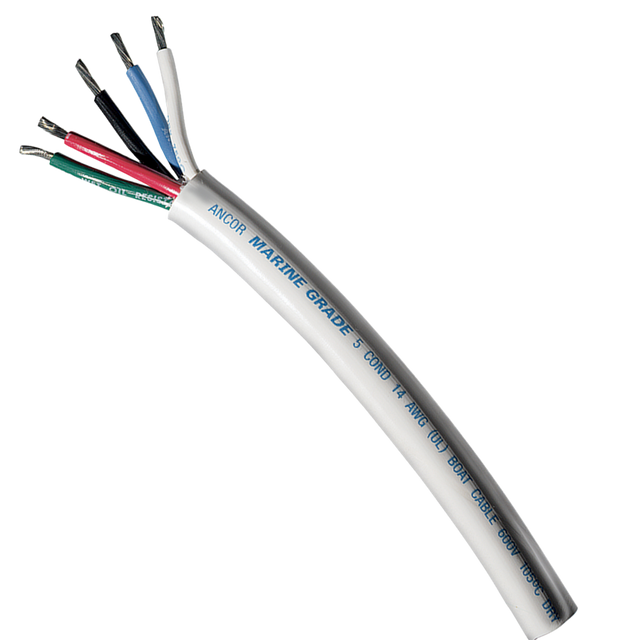

Ancor Marine Grade Tinned Copper Mast Cable

The Ancor Marine Grade Tinned Copper Mast Cable is a durable marine electrical wire designed for mast runs, lighting, instruments and general boat wiring. Available in common multi-conductor configurations such as 14/5 AWG and 20/8 AWG, this tinned copper mast cable is UL‑listed and sold in 100' coils to provide reliable corrosion resistance and long service life. Ancor cable remains flexible in cold conditions and is intended for saltwater environments where long-term conductivity matters.

Key Features

• Tinned Copper Conductors: 100% tinned for superior corrosion resistance and stable conductivity in marine environments.
• Multiple AWG Configurations: Available in 14/5 AWG for higher-current runs and 20/8 AWG for signal/control circuits.
• 100' Coil Length: Long spool length reduces the need for splices and simplifies mast-to-panel wiring.
• UL-Listed & Flexible: Manufactured to marine wiring standards (UL 1426) and designed to remain flexible for routing in tight spaces.
• Color-Coded Conductors: Individual conductor colors (Black/Blue/Green/Brown/Red) with white jacket options to simplify identification and termination.

Ancor mast cable is ideal for mast wiring, deck lighting, instruments, radios and other onboard systems where saltwater exposure and vibration demand tinned conductors. Choosing 14/5 AWG provides heavier-duty power capacity while 20/8 AWG offers compact multi-conductor signal routing. Typical packaged weights for the 100' coils observed in research: 14/5 ≈ 19 lb (packaged, measured from listings); 20/8 ≈ 7.6 lb (estimated) — see variant entries for packaged dimensions and shipping weight.

Specifications: 100' length (typical), tinned copper conductors, available in 14/5 and 20/8 AWG. Compatible with standard marine terminals, heat-shrink and crimp connectors. For precise packaging and shipping dimensions, refer to the variant-level details or contact Ancor directly.
