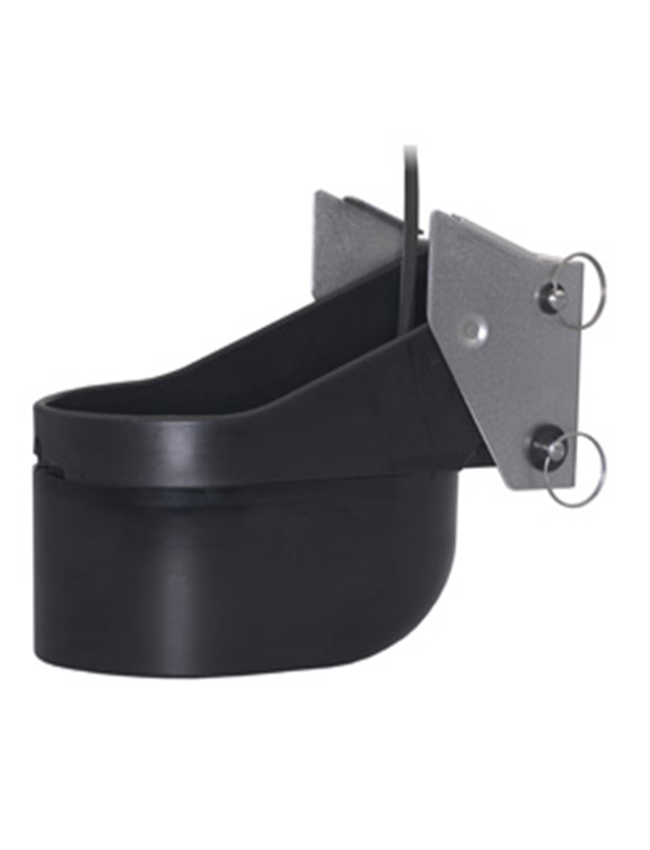

TM260 50/200kHz, 1kW, Navico 9-Pin, DT

1 kW

The TM260 comes with a rugged stainless-steel mounting bracket that is easy to install and has a streamlined shape. The performance of Airmar’s "1 kW, 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.

Specifications

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
• Transom mount for installation on outboard or inboard/outboard powered boats
• Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
• SEALCAST^™, seamless, urethane housing for long life in the water
• Also available as bronze thru-hull (B260), stainless steel thru-hull (SS260), and in-hull (M260) mounts
• Patented Xducer ID^® technology
