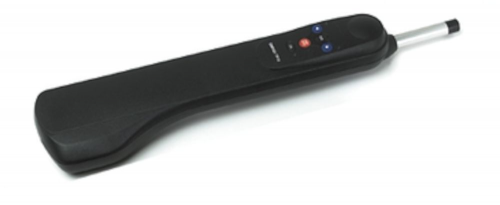

SIMRAD Tillerpilot TP10

The TP10 delivers reliable auto steering for boats with tillers up to 32ft in length. Simple, straightforward controls and a precise steering system - normally only found on higher-end models - combines in a quiet package with extremely low power draw to allow sailors a safe passage in coastal waters.

Technical/Environmental
Operating Temperature	-10° to +55°C
Operating Temperature Stored	-10° to +55°C
Product Width	105 mm / 4.1 in
Product Depth	60 mm / 2.4 in
Product Height	610 mm / 24 in
Power
Power Supply (Supply Voltage)	12Vdc (10.8 - 16Vdc)
Power Consumption Auto	0.5A
Power Consumption Standby	0.06A
Other
Adjustable Gain	True
Alarm Audible And Visible	True
Automatic Tracking	True
Auto Trim	True
Gain	1-9
Night Illumination	True
Non Volatile Memory	True
Storm Proof	True
Auto Seastate	True
Autopilot/Auto-Steering
Intelligent Steering Action	True
Max Boat Length [m]	10
Mounting Selectable Port Or Starboard	True
Peak Thrust	65kg
Drive System	Screw thread
Fluxgate Compass	True
Max Boat Displacement [tons]	3.7
