Simrad IS42 Speed & Depth Instrument Pack

Outfit your boat with Simrad's IS42 Speed / Depth Pack and enjoy accurate depth / speed readings on a crystal-clear display that puts the sailing data you rely on, exactly where you need to see it.

Features:

IS42 Display

• Displays wind, speed, depth, engine data, autopilot status and more
• Add the Optional OP12 keypad (Sold Separately) to take full control of your Simrad autopilot system
• Applications: Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers (Sold Separately)
• Optically bonded 4.1-inch color display t eliminates the possibility of condensation or fogging within display
• Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the displayed image
• Waterproof controls make the IS42 easy to use in rough conditions, and reliably responsive to wet or gloved hands
• Advanced AIS functionality including DSC calling to AIS-equipped vessels
• Intuitive operation with waterproof silicon keys
• Easy installation with front-mount option and just one cable
• Low-profile glass helm
• Integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels
• Certified NMEA 2000® connectivity

DST-810 Smart Sensor Transducer

• Provides extremely accurate data across all three fields; depth / speed / temperature
• 235 kHz Frequency prevents mutual interference with any other echosounders on the boat
• Extremely cost effective option due to the requirement for just one hole in the hull
• Straight forward connection, perfect for ease of installation

Specifications:

IS42 Display

• Dimensions: 4.6 x 4.5 x 1.1" (118 x 115 x 28 mm)
• Power Consumption: 1.8W (MAX)
• Network Load: 3 LEN
• Color: Black
• Display Size: 4.1" (diagonal). 4:3 Aspect ratio
• Display Type: Transmissive TFT-LCD, bonded. White LED backlight
• Display Resolution: 320 x 240 pixels
• Illumination: White for day mode. Red, green, blue or white for night mode
• Waterproof: IPx7
• Humidity: Up to 95% RH
• Compass Safe Distance: 300 mm (1")
• Temperature Operating: -15 to +55° C (5° F to +131° F)
• Temperature Storage: -30 to +70° C (-22 to +158° F)

DST-810 Smart Sensor Transducer

• Frequencies: 235KHz
• Minimum depth range: 0.5 M (1.6')
• Maximum depth range: Up to 100 M (330')
• Speed range: Up to 45 knots
• Pulse rate: 20,000 p/nm (5.65 Hz per knot)
• Power Consumption, Max: 1.8 W
• Supply Voltage: 9 - 16 V DC
• Dimensions: 75 x 125mm (2.9 x 4.9") - Including housing
• Compliance: IERC60945

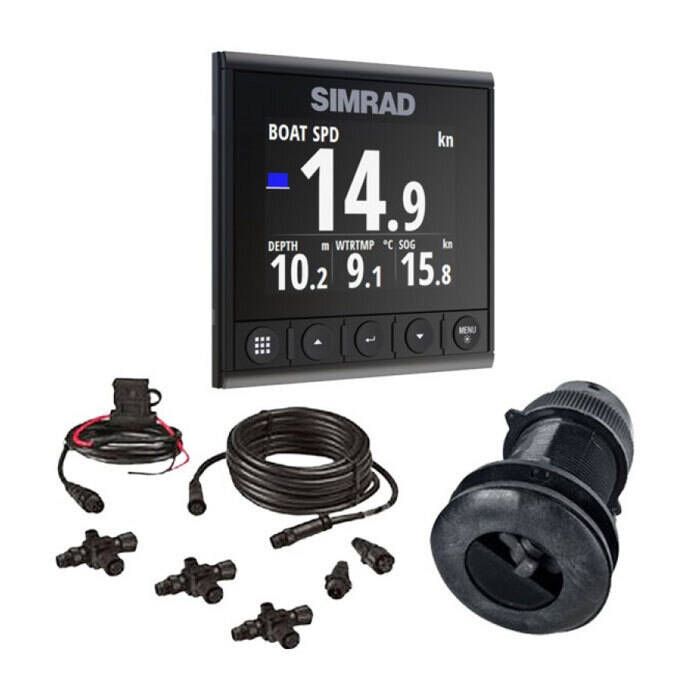

Included:

• IS42 Digital Display
• DST-810 Depth / Speed / Temp Sensor, Plastic Thru-hull Housing
• NMEA 2000 Micro-C Backbone Kit
  • (2) Micro-C T-Joiner
  • (1) Micro-C Power Cable + T-Connection
  • (1) 4.5M Extension Cable, Micro-C
  • (1) Set of 1 Male and 1 Female NMEA 2000 Terminators
