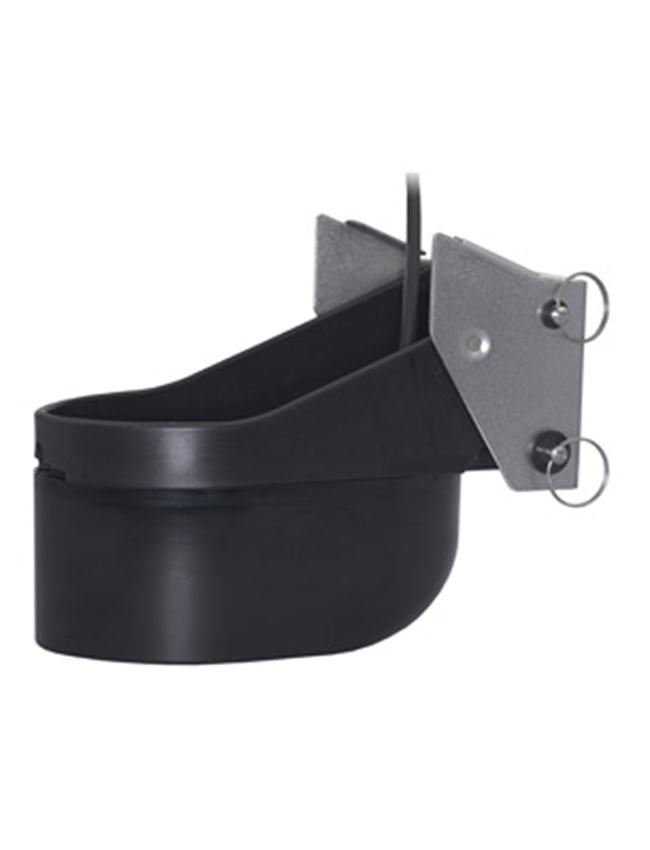

TM275LHW Low-High Wide Chirp, 1kW, Navico 9-Pin

1 kW

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready TM275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

Dimensions W x H x D: 108 x 191 x 74 mm (4.3 x 7.5 x 2.9") without bracket

Weight: 4 kg (8.9 lb)

Frequencies: 42-65 kHz & 150-250 kHz

Max Depth: 760m (2500 ft) (low freq) depending on Sonar
