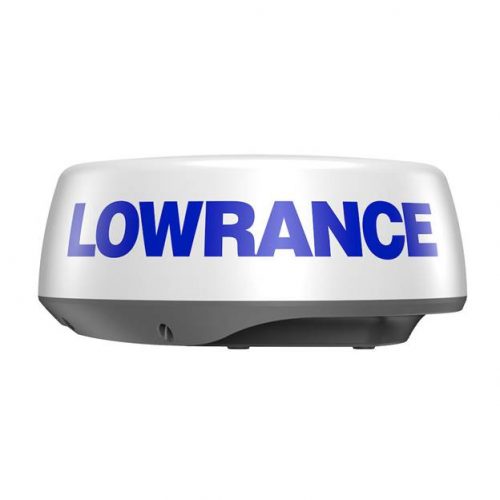

Lowrance Halo 20 – Compact 20” Marine Radar System

Enhance Your Awareness with the HALO20 Marine Radar

Stay safe and informed on the water with the HALO20 Radar, a compact 20-inch dome unit designed for small sportfishing vessels and dayboats. This high-performance radar uses advanced pulse compression technology to detect targets from close range up to 24 nautical miles.

Compact Power and Performance

• 10W Pulse Compression Technology
  Offers long-range detection and ultra-clear close-range visibility, giving you unmatched situational awareness.

• 24 Nautical Mile Detection Range
  Efficiently tracks objects and hazards near and far with precise clarity.

• InstantOn™ and MARPA Tracking
  Get immediate radar feedback and monitor up to 10 targets at once with Mini-Automatic Radar Plotting Aid.

Easy to Use, Built for Real Conditions

• Multiple Radar Modes
  Switch between Harbour, Offshore, and Weather modes for optimized performance in any setting.

• Radiation-Safe Operation
  Safe for use in all onboard areas, even on smaller vessels.

• Low Power Consumption
  Draws only 18W on average and 20W max—ideal for extended use.

Technical Specifications

• Beam Width: 4.9° horizontal x 25° vertical

• Rotation Speed: 24 RPM

• Minimum Range: 50 meters

• Maximum Range: 24 nautical miles

• Operating Temperature: -25° to +55°C

• Waterproof Rating: IPX6

• Weight: 5.9 kg (13 lbs)

• Dimensions: 510 mm diameter x 223 mm height

• Interface: Lowrance MFD compatible

• Compliance: FCC, CE, RED, IC, RCM, IEC

Ideal for Small Boats and Sportfishers

Whether navigating tight harbors or scanning for distant weather systems, the HALO20 Radar provides the visibility and accuracy needed to make safe, confident decisions on the water.
