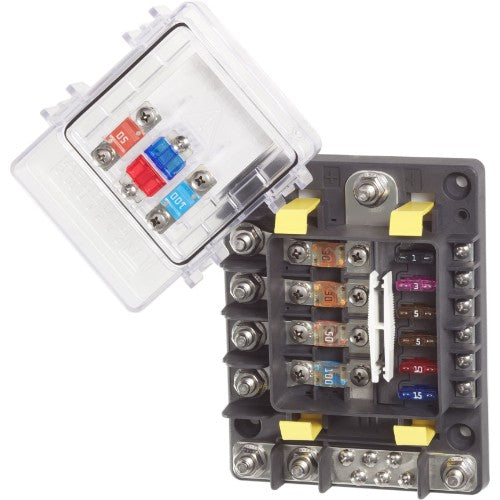

Blue Sea - Safety Hub 150 Fuse Block

$22799 CAD
An ignition protected fuse block with screw termination safe for use on gasoline powered boats

  • Brand
    Blue Sea Systems
  • SKU:
    BSS-7748
  • Barcode:
    632085077488

Description

An ignition protected fuse block with screw termination safe for use on gasoline powered boats
Specifications Circuits: 10 Stud Size: M8 x 1.25 Operating Voltage: 12V, 24V, 32V Amperage Maximum Operating - combined: 200A, 350A, 600A Recommended Ring Terminal: M8 (5/16") An ignition protected fuse block with screw termination safe for use on gasoline powered boats
  • Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
  • Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
  • Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
  • Negative bus provides common location for negative connection
  • Circuit identification label with write-on capability
  • Fuse puller easily removes ATO® or ATC® Fuses
  • Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately
