B&G  |  SKU: 000-11048-002

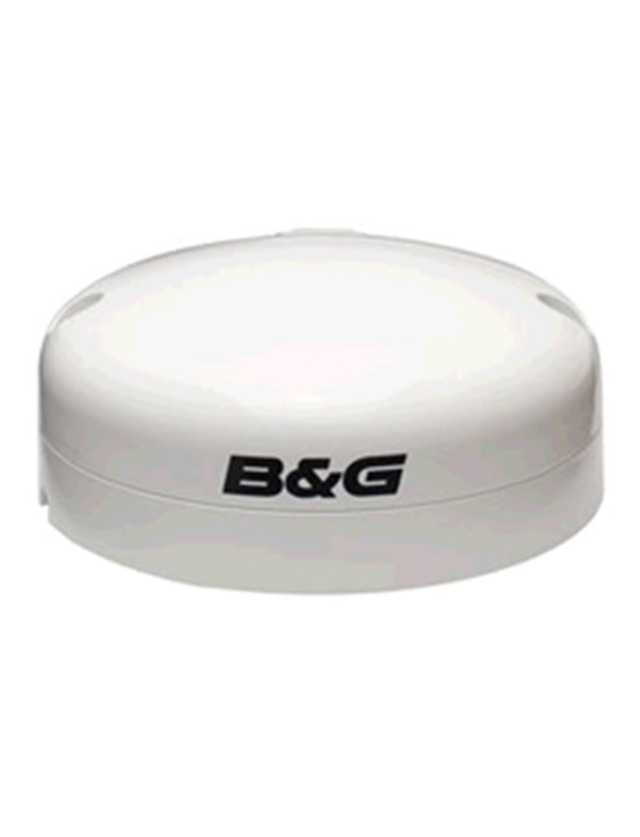

B&G ZG100 GPS Antenna with Compass

$449.40 CAD
Ships By Sat, July 18 Free Canada Shipping

Why Shop With Us

✔ Locally owned in Nanaimo, BC
✔ Trusted by boaters and anglers since 1986
✔ Knowledgeable staff with real on-the-water experience
✔ Large in-stock selection of marine & fishing gear

We’re here to help you get the right gear the first time.

Shipping & Pickup

We ship across Canada with fast, reliable delivery from our Nanaimo location.

✔ Trusted since 1986
✔ Fast Canada-wide shipping
✔ Expert support available

Need it sooner or have questions? Our team is here to help.

Returns & Warranty

We stand behind the products we sell and want you to shop with confidence.

✔ Easy returns on eligible items
✔ Manufacturer warranties supported
✔ In-store support available if you need help

If something isn’t right, reach out and we’ll make it right.

Product details

The B&G ZG100 GPS antenna provides precise and dependable position data making it the perfect partner for B&G chartplotters and instrument systems.

The highly accurate 10 Hz GPS gives precise and smooth update of position information during acceleration and manoeuvering, rapid signal acquisition and consistent position accuracy augmented by secondary satellite systems like WAAS, EGNOS, MSAS and Galileo. It is also QZSS-ready.

The integrated compass delivers accurate heading information for instruments, chart stabilisation for Head Up mode and Radar overlays. It also provides Heel and Trim data for sailing.

Please note this product is not suitable for use with MARPA or B&G Pilot systems; this requires a rate compass such as the Precision-9, RC42 or Halcyon Gyro-Stabilised Compass.

Key Features

  • Highly accurate position
  • 10Hz update rate
  • Sail Specific COG/SOG filtering for optimum performance
  • GPS/Galileo support
  • Augmented with WAAS, EGNOS and more
  • Integrated heading sensor
  • Heel & Trim sensors
  • Compact, waterproof (IP67) design
  • NMEA 2000®

Specifications

Connectivity
N2K PG Ns - 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257
NMEA 2000 Connectivity - 1x NMEA 2000 Micro-C port, 2 LEN
Approvals
Approvals Compliance - CE under RED 2014/53/EU Directive
Electrical
Power Consumption max - 2 W
Power Consumption typical - < 2 W
Supply Voltage - 9 V DC - 18 V DC
Environment
Humidity - 40ºC, 93% RH, operating
Operating Temperature Range - -25°C to 60°C (-13°F to 140°F)
Storage Temperature Range - -40 to + 85ºC (-40 to + 185ºF)
Waterproofrating - IPX7
GPS
Correction - DGPS, WAAS, EGNOS, GLOANASS, MSAS, Galileo
GPS Receiver Channels - 32 Channels
Position Accuracy - 3m (9.8 ft)
Time to First Fix - 3s (Cold Start 50s)
Update rate - Up to 10 Hz (1,5,10)
HeadingSensors
Heading Sensor Accuracy - +/- 3º Heading, +/- 1º Roll/Pitch @ 30º
Heading Sensor Data Available - Magnetic, Heading, Rate of Turn, Heel Angle, Trim Angle
Heading Sensor Data Protocol - NMEA 2000
Sensor Type - Solid state
Physical
Compass Safe - 0.5 m (20")
Mounting Type - Flush mount / Standard Pole Mount
Weight - 0.14 kg (0.3 lbs)
Other
Warranty Period - 2 Years

What's in the box?

  • N2K-T-RD Network T-Connector
  • NMEA 2000 6ft Network Extension Cable
