AB Inflatables  |  SKU: AB-NAVI-9-VS

AB Inflatables Navigo 9 VS

$9,487.76 CAD

The most spacious fiberglass RIB on the market, easily customizable to fit your every need.

Key Features

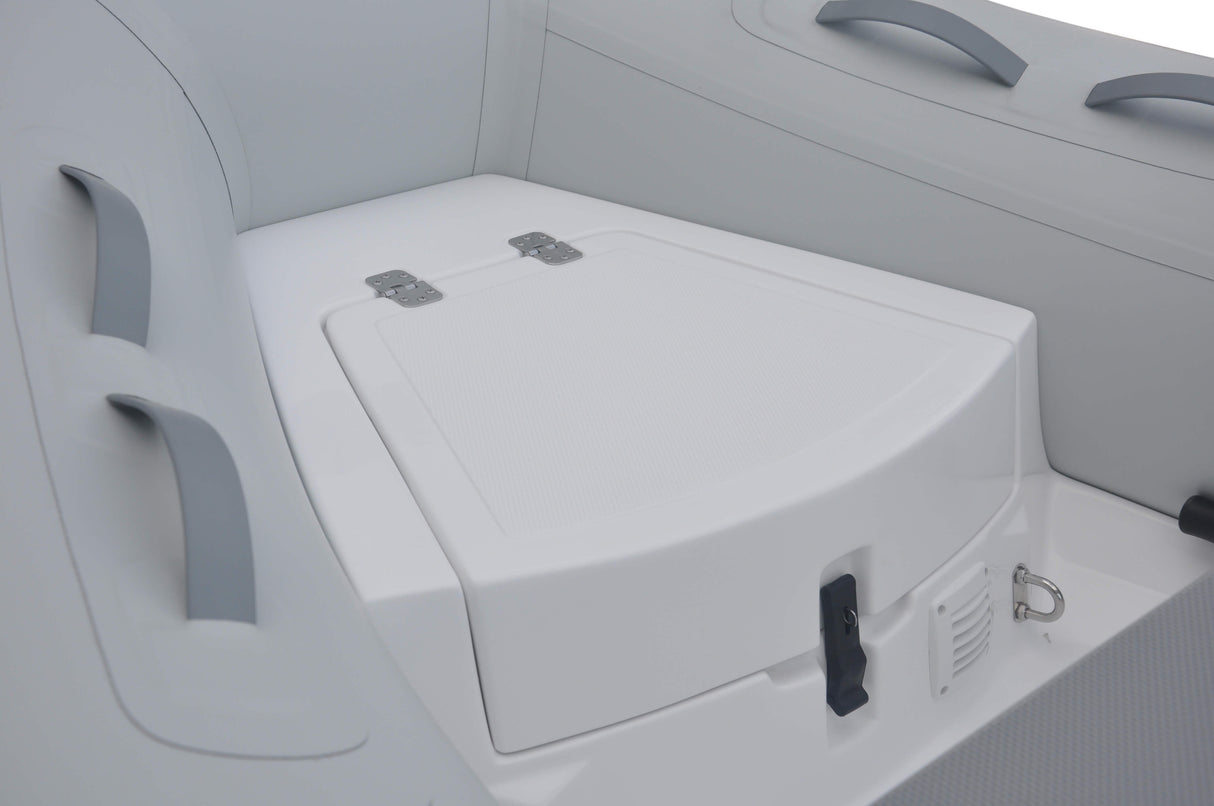

  • Bow Locker with Storage to Fit a 6 Gal Portable Fuel Tank
  • "V" Hull
  • Double Solid Rubrail
  • Aluminum Removable Rowing Seat
  • More Payload capacity
  • Diamond Shape Non-skid deck
  • ORCA (CSM) Coated Fabric
  • Sunbrella Fabric Dinghy Chap Available
  • Sunbrella Fabric Boat Cover Available
  • Internal Aluminum Plate with Security Lip
  • Transom Towing & Tie Down SS Rings
  • Reinforced (CSM) Fabric Handles
  • Custom Colors Upon Request
Specs
Overall length 9' 6" / 2,90m
Overall Beam 5' 7" / 1,72m
Inside Length 6' 9" / 2,06m
Inside Beam 2' 8" / 0,81m
Tube Diameter 17" / 0,43m
Number of Chambers 3+1
Person Capacity 4
Weight 152lbs / 69kg
Recommended HP 9,9hp / 7,4kw
Maximum HP 15hp / 11,2kw
Shaft Length 15" / 38,1cm
RDC Design Category C
Standard Equipment
  • Hand Laid Fiberglass Deep “V” Hull
  • Stringer System Laminated into Hull
  • Bow Locker/Seat with Vent
  • Bow Locker with Storage to Fit a 6 Gal Portable Fuel Tank
  • Diamond Shape Non-Skid Deck
  • Plastic External Transom Plate
  • Aluminum Internal Transom Plate with Security Lip
  • Orca (CSM) Five Layer Coated Fabric
  • 3 Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
  • Raised Solid Single Rub Rail
  • Stainless Steel Bow Eye
  • 4 Stainless Steel Davit Lifting Points
  • Stainless Steel Tow Rings & Tie Downs
  • Deck Condensation Plug
  • Deck Drain with Plug
  • 1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
  • 2 Inside Bow Sets of 2 Orca (CSM) Fabric Handles on Tubes
  • 2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
  • 3 Layers Reinforced Seams
  • Oarlock Base
  • Telescopic Oars with Aluminum Shaft
  • Paddle Holders
  • Removable Rowing Seat
  • Hand Pump
  • Maintenance Kit
  • Owner's Manual
  • Additional Air Retaining Chamber Under the Floor
Optional Equipment
  • Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
  • Bow Hatch Cushion
  • Tube Chaps
  • Boat Cover
  • Chock Set
  • Bow Step with Fold Down Stainless Steel Cleat
  • Lateral Fold Down Stainless Steel Cleat
  • Removable Stern Seat
  • Bimini Top
