Seachoice U-Bolt Square
$1199 CAD
Unit price
/
Unavailable
Seachoice U-Bolt Square - 3/8"-16 / A 1 5/8" x B 3 9/16" x C 1 3/4" is backordered and will ship as soon as it is back in stock.
Pickup available at our Nanaimo Store
Usually ready in 24 hours
-
BrandSeachoice
-
SKU:SEC-57321
-
Barcode:
-
Thread Diameter3/8"-16, 7/16"-14, 1/2"-13
-
SizeA 1 5/8" x B 3 9/16" x C 1 3/4", A 3 1/16" x B 3 7/8" x C 1 3/4", A 3 1/16" x B 4 7/8" x C 1 3/4", A 1 9/16" x B 3 9/16" x C 1 3/4", A 2 1/16" x B 2 13/16" x C 1 3/4", A 4 1/16" x B 2 13/16" x C 1 3/4", A 3 1/16" x B 3 13/16" x C 2", A 3 1/16" x B 3 5/16" x C 2", A 3 1/16" x B 4 5/16" x C 2", A 3 1/16" x B 5 5/16" x C 2", A 3 1/16" x B 6 5/16" x C 2"
Seachoice U-Bolt Square
From
$899 CAD
Unit price
/
Unavailable
Description
Description
Made of galvanized steel. Include nuts and lock washers. Covers most U-Bolt applications. One per card.

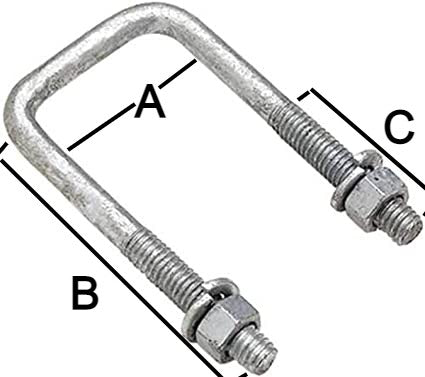

| PART NUMBER | THREAD DIAMETER | INSIDE SPAN (A) | INSIDE BOLT HEIGHT (B) | THREAD LENGTH (C) | STYLE/TYPE |
| 57201 | 7/16"-14 | 1 9/16" | 3 9/16" | 1 3/4" | SQ |
| 57211 | 7/16"-14 | 2 1/16" | 2 13/16" | 1 3/4" | SQ |
| 57221 | 7/16"-14 | 3 1/16" | 2 13/16" | 1 3/4" | SQ |
| 57231 | 7/16"-14 | 3 1/16" | 4 5/16" | C 1 3/4" | SQ |
| 57241 | 7/16"-14 | 4 1/16" | 2 13/16" | 1 3/4" | SQ |
| 57321 | 3/8"-16 | 1 5/8" | 3 9/16" | 1 3/4" | SQ |
| 57331 | 3/8"-16 | 2 1/16" | 3 3/8" | 1 3/4" | SQ |
| 57341 | 3/8"-16 | 2 1/16" | 7 7/8" | 4" | SQ |
| 57351 | 3/8"-16 | 3 1/16" | 3 7/8" | 1 3/4" | SQ |
| 57361 | 3/8"-16 | 3 1/16" | 4 7/8" | 1 3/4" | SQ |
| 57401 | 1/2"-13 | 1 9/16" | 4 1/16" | 2" | SQ |
| 57411 | 1/2"-13 | 2 1/16" | 4 13/16" | 2" | SQ |
| 57431 | 1/2"-13 | 3 1/16" | 3 13/16" | 2" | SQ |
| 57441 | 1/2"-13 | 3 1/16" | 3 5/16" | 2" | SQ |
| 57451 | 1/2"-13 | 3 1/16" | 4 5/16" | 2" | SQ |
| 57461 | 1/2"-13 | 3 1/16" | 5 5/16" | 2" | SQ |
| 57471 | 1/2"-13 | 3 1/16" | 6 5/16" | 2" | SQ |
