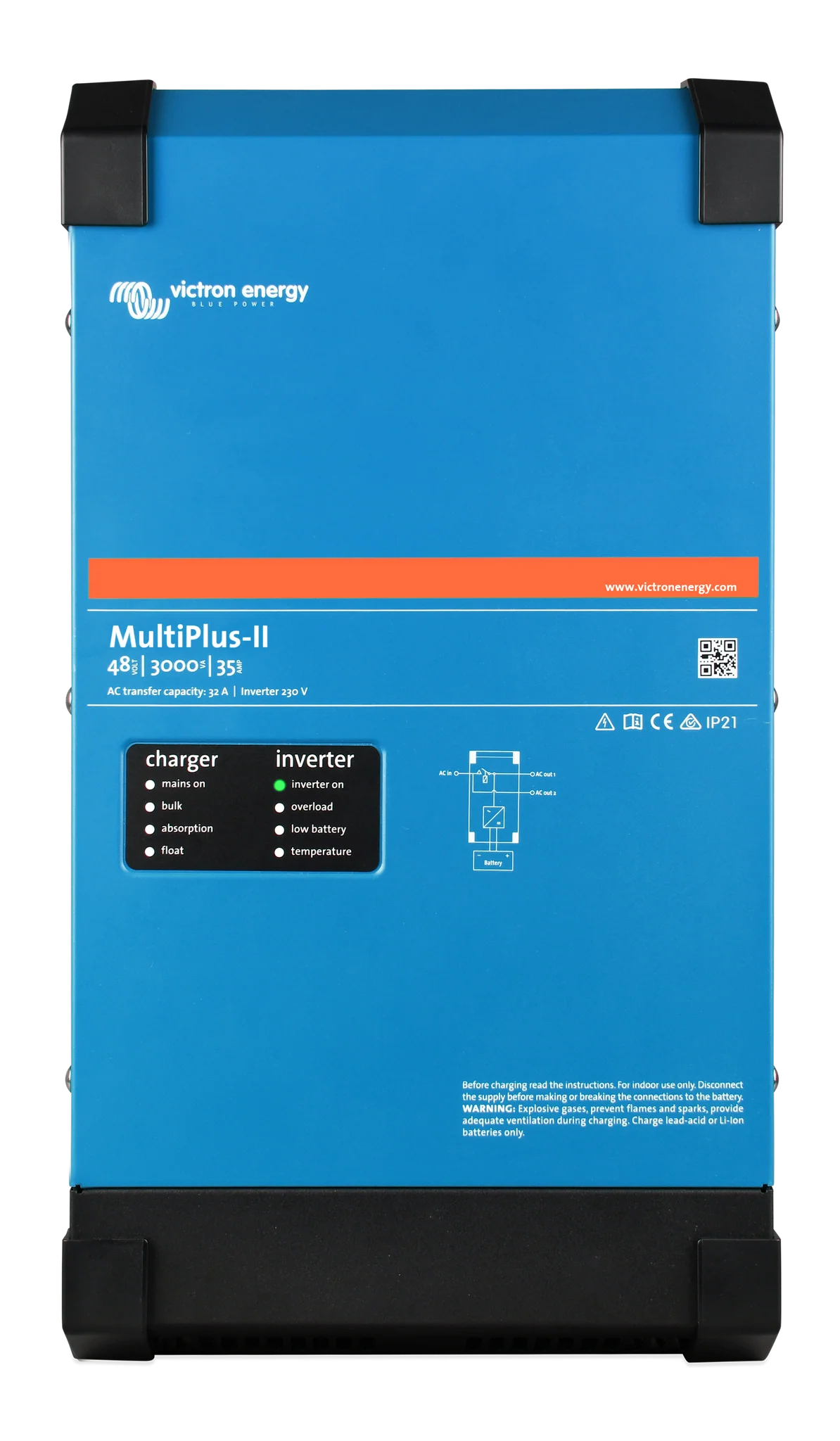

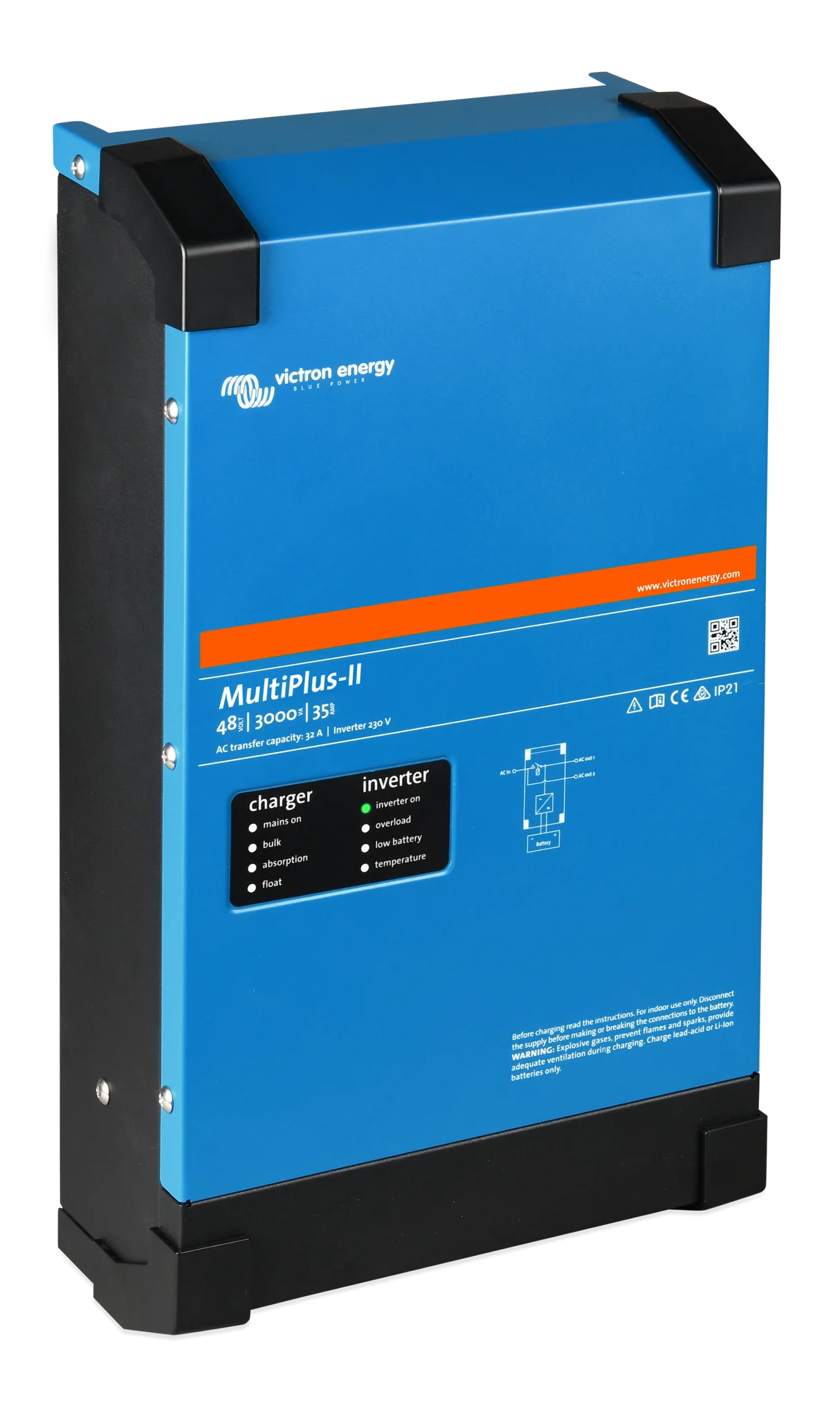

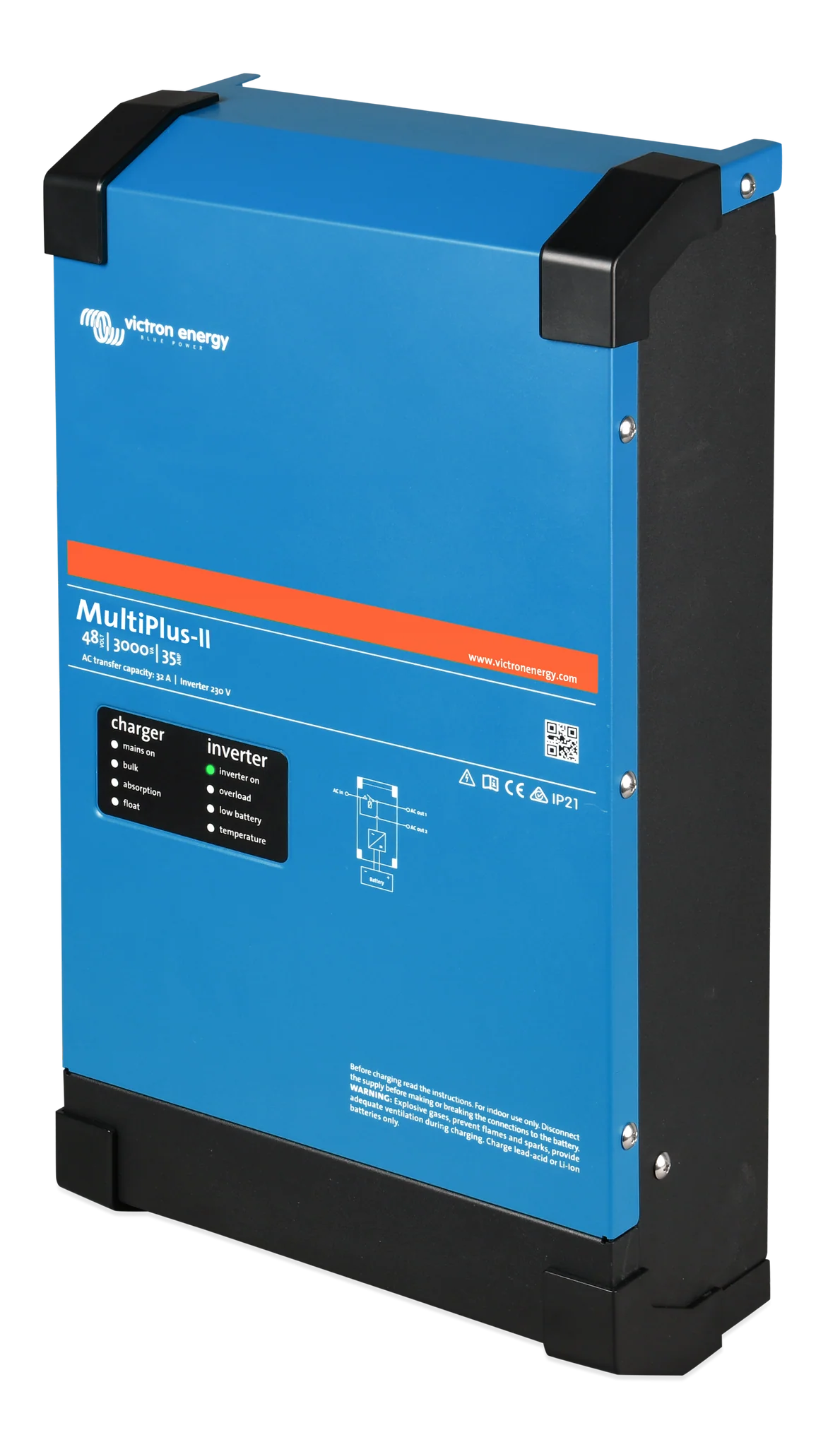

Victron Energy Inverter/Charger MULTIPLUS-II 48/3000/35-50 120V PMP482305102

Victron MultiPlus-II Inverter/Charger – True Sine Wave Power with Smart Energy Management

The Victron MultiPlus-II is a versatile, high-performance inverter/charger that combines the capabilities of the original MultiPlus with enhanced power management. Designed for marine, RV, and off-grid applications, it features a true sine wave inverter, adaptive battery charging, and a high-speed AC transfer switch in a single compact unit. This system ensures reliable operation of sensitive electronics and prevents overloads of limited AC sources such as generators or shore power.

When shore or generator power is disconnected, the MultiPlus-II automatically activates inverter mode in less than 20 milliseconds, ensuring uninterrupted power to connected devices, including computers and navigation equipment.

Key Features

Multifunctional with Intelligent Power Management
PowerControl and PowerAssist work together to manage limited power sources, preventing overload, and supplementing additional peak demand by drawing power from the battery.

Fast Transfer AC Output (No-Break Function)
The main AC output switches to inverter power in less than 20 milliseconds, ensuring essential devices continue to operate without interruption.

Dual AC Outputs

• Output 1: No-break supply for essential loads

• Output 2: Activates only when shore or generator power is available, preventing non-essential loads (e.g., water heaters) from discharging the battery

Expandable Power Capacity

• Parallel operation: connect up to six MultiPlus units for a combined 15kW/18kVA output with 420 amps of charging capacity

• Three-phase capability: three units can be configured for three-phase power systems

Adaptive Four-Stage Battery Charging
Utilizes software-controlled charging to optimize the charging cycle based on battery condition, extending battery life and maintaining performance. Also supports charging of dual battery banks.

Simple Configuration and Integration
Initial setup is straightforward using DIP switch settings. When connected with a Color Control GX or other GX devices, system settings can be monitored and adjusted remotely via Ethernet.

Remote Monitoring and Control
When connected to Victron remote management systems, users can access, configure, and monitor performance from anywhere.
