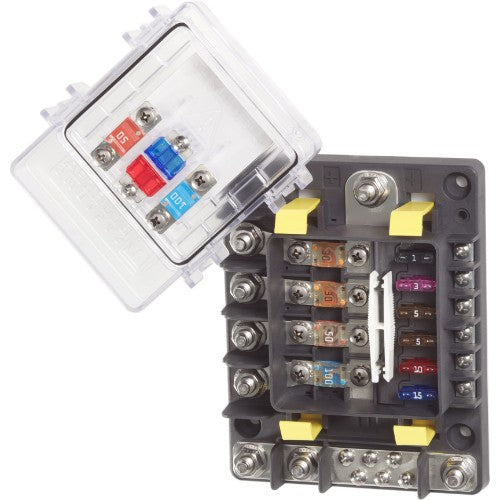

Blue Sea - Safety Hub 150 Fuse Block

An ignition protected fuse block with screw termination safe for use on gasoline powered boats
Specifications Circuits: 10 Stud Size: M8 x 1.25 Operating Voltage: 12V, 24V, 32V Amperage Maximum Operating - combined: 200A, 350A, 600A Recommended Ring Terminal: M8 (5/16") An ignition protected fuse block with screw termination safe for use on gasoline powered boats

• Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
• Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
• Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
• Negative bus provides common location for negative connection
• Circuit identification label with write-on capability
• Fuse puller easily removes ATO® or ATC® Fuses
• Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
• One-piece stainless flange nuts ensure safe and secure connections
• Fuses sold separately
