Seadog | SKU:
SED-080812
Seadog - Galvanized Shoulder Eye Bolt
Regular price
$3.19 CAD
Unit price
/
Unavailable
Seadog - Galvanized Shoulder Eye Bolt - 1/4"x 2" is in stock and available for pickup within 24hrs.
Ships By Sat, December 6
Free
Canada Shipping over $120
Couldn't load pickup availability

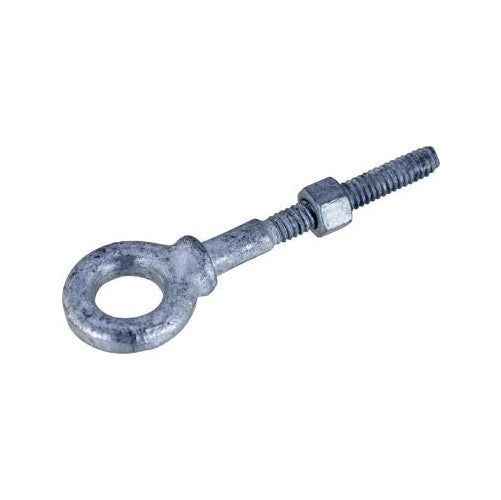

Seadog - Galvanized Shoulder Eye Bolt
Regular price
From
$3.19 CAD
Unit price
/
Unavailable
Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
These Shoulder Eye Bolts are designed to take inline loads, but can handle limited side loading. Constructed of forged hot dipped galvanized steel. These eye bolts feature UNC threads and include a UNC galvanized nut.
| Part # | A | B | C | D | E |
|---|---|---|---|---|---|
| 080812 | 1/4"-20 NC | 2" | 1/2" | 3-1/16" | 9/16" |
| 080822 | 5/16"-18 NC | 2-5/16" | 9/16" | 3-9/16" | 5/8" |
| 080832 | 3/8"-16 NC | 2-7/16" | 11/16" | 3-15/16" | 11/16" |
| 080834 | 3/8"-16 NC | 4-1/2" | 11/16" | 6-1/16" | 11/16" |
| 080843 | 1/2"-13 NC | 3-1/4" | 15/16" | 5-1/8" | 1" |
| 080846 | 1/2"-13 NC | 5-7/8" | 15/16" | 7-13/16" | 1" |
| 080854 | 5/8"-11 NC | 4-1/8" | 1-1/4" | 6-9/16" | 1-1/4" |
| 080856 | 5/8"-11 NC | 6" | 1-1/4" | 8-5/16" | 1-1/4" |
| 080864 | 3/4"-10 NC | 4-3/8" | 1-7/16" | 7-3/8" | 1-1/2" |
| 080866 | 3/4"-10 NC | 6-1/16" | 1-7/16" | 9" | 1-1/2" |
-
BrandSeadog
-
SKUSED-080812
-
TypeEye Bolts
-
Barcode910000007476
