Blue Sea Systems | SKU:
BSS-7748

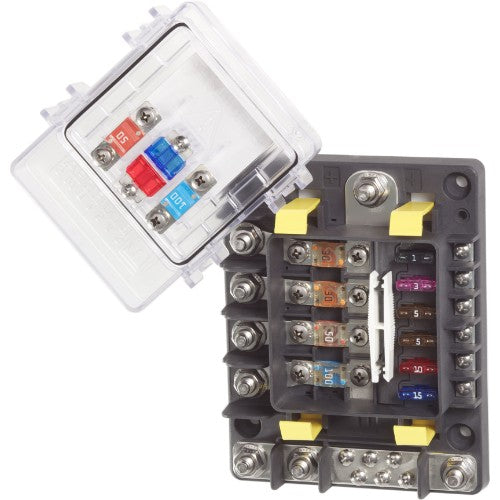

Blue Sea - Safety Hub 150 Fuse Block
Sale price
$140.93 CAD
Regular price
$234.99
Unit price
/
Unavailable
Blue Sea - Safety Hub 150 Fuse Block is backordered and will ship as soon as it is back in stock.
Ships By Tue, December 9
Free
Canada Shipping
Couldn't load pickup availability
An ignition protected fuse block with screw termination safe for use on gasoline powered boats
Specifications Circuits: 10 Stud Size: M8 x 1.25 Operating Voltage: 12V, 24V, 32V Amperage Maximum Operating - combined: 200A, 350A, 600A Recommended Ring Terminal: M8 (5/16") An ignition protected fuse block with screw termination safe for use on gasoline powered boats
Specifications Circuits: 10 Stud Size: M8 x 1.25 Operating Voltage: 12V, 24V, 32V Amperage Maximum Operating - combined: 200A, 350A, 600A Recommended Ring Terminal: M8 (5/16") An ignition protected fuse block with screw termination safe for use on gasoline powered boats
- Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
- Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
- Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
- Negative bus provides common location for negative connection
- Circuit identification label with write-on capability
- Fuse puller easily removes ATO® or ATC® Fuses
- Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
- One-piece stainless flange nuts ensure safe and secure connections
- Fuses sold separately
-
BrandBlue Sea Systems
-
SKUBSS-7748
-
TypeFuse Holders and Blocks
-
Barcode632085077488
