Blue Sea Systems  |  SKU: BSS-5511E

Blue Sea e-Series Dual Circuit Plus Battery Switch

$109.99 CAD

Pickup available at Nanaimo Store

Usually ready in 24 hours

Simultaneously switches two isolated battery banks or combines battery banks to all loads

  • Make-before-break contact design allows switching without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats

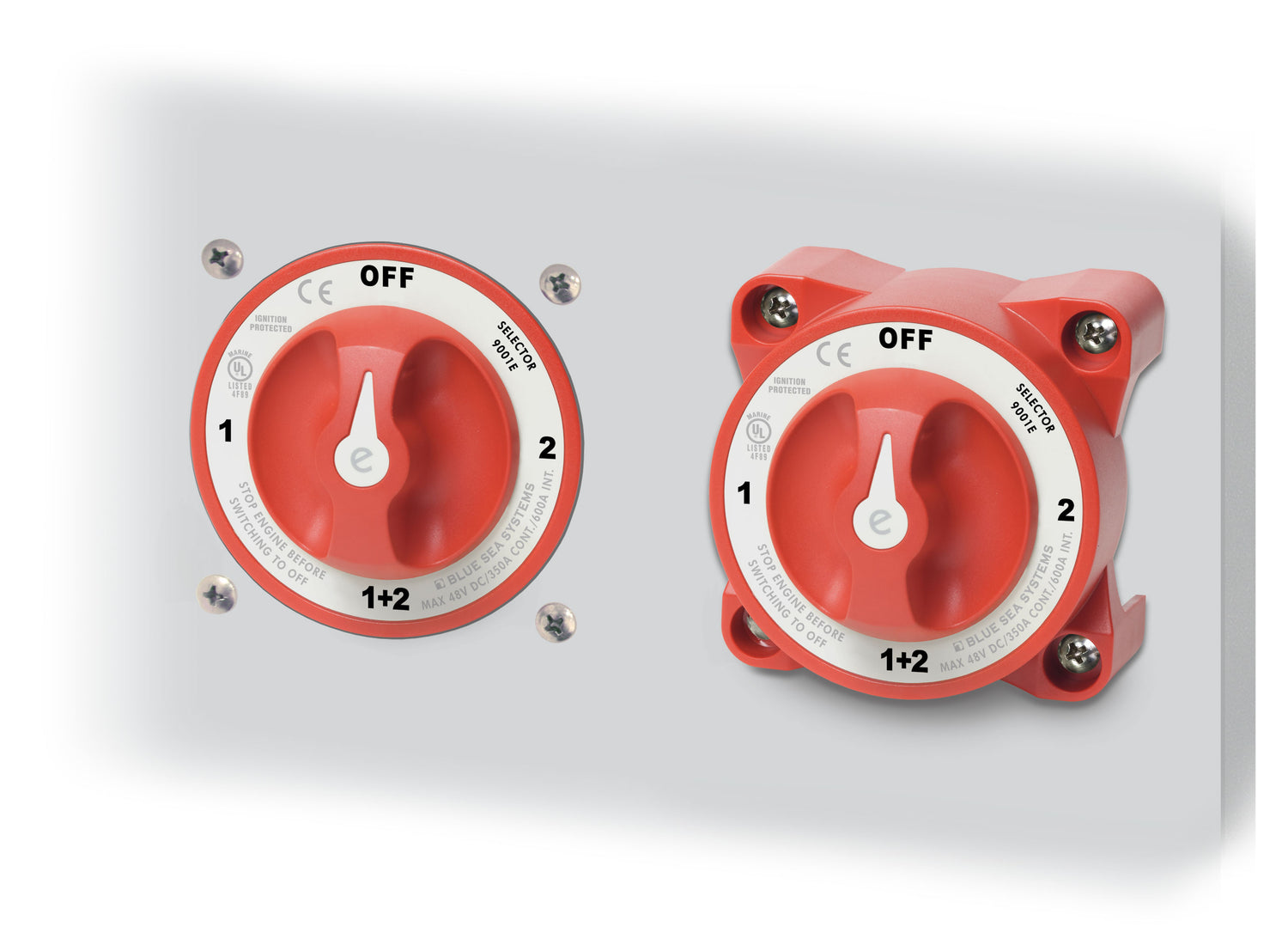

  • Case design allows surface or rear panel mounting
Specifications
Switch Type Dual Circuit Plus
Color Red
Switch Positions 3
Battery Combine Yes
Alternator Field Disconnect No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating 350A
Intermittent Rating 525A (5 min)
Cranking Rating 30 sec 700A per circuit
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.16lb (0.53 kg)
Weight 1.30lb (0.59 kg)
Resources
