$9.60 off
Seadog - Stainless U-Bolt
$1699 CAD
Unit price
/
Unavailable
Seadog - Stainless U-Bolt - 5mm DIA 1-3/8" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
-
BrandSeadog
-
SKU:SED-080253-1
-
Barcode:
-
Size5mm DIA 1-3/8", 6mm DIA 1-1/4", 6mm DIA 1-7/8", 8mm DIA 1-3/8"
Seadog - Stainless U-Bolt
From
$1439 CAD
$2399
Unit price
/
Unavailable
Description
Description

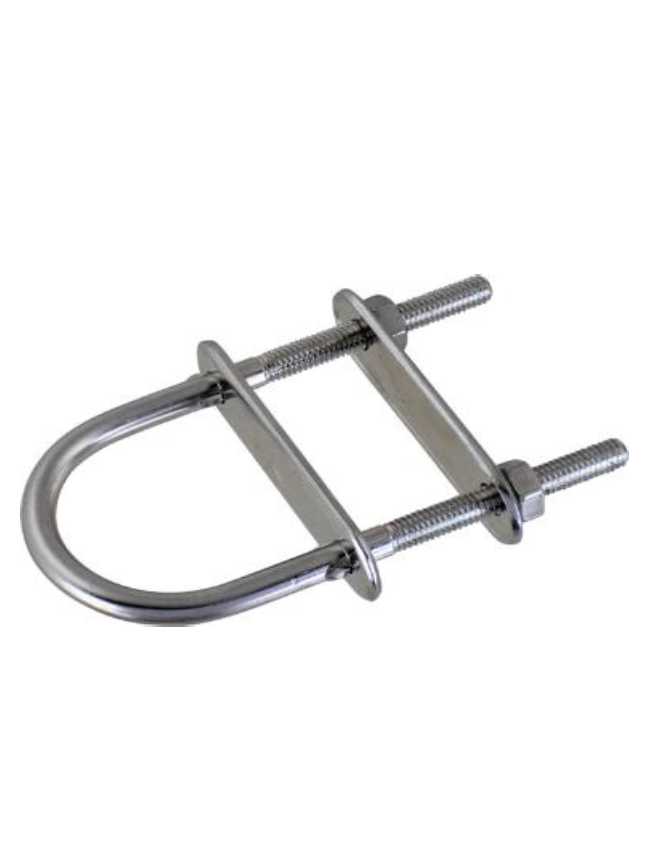

U-BOLT
Machined 304 Stainless Steel
These U-bolts feature an outer mounting plate which is held in place by crimped ears forged into the U-Bolt. Constructed of corrosion resistant machined 304 stainless steel with metric threads. Metric nuts included.
Plate Size: 1-5/8" x 1/2" (x2)

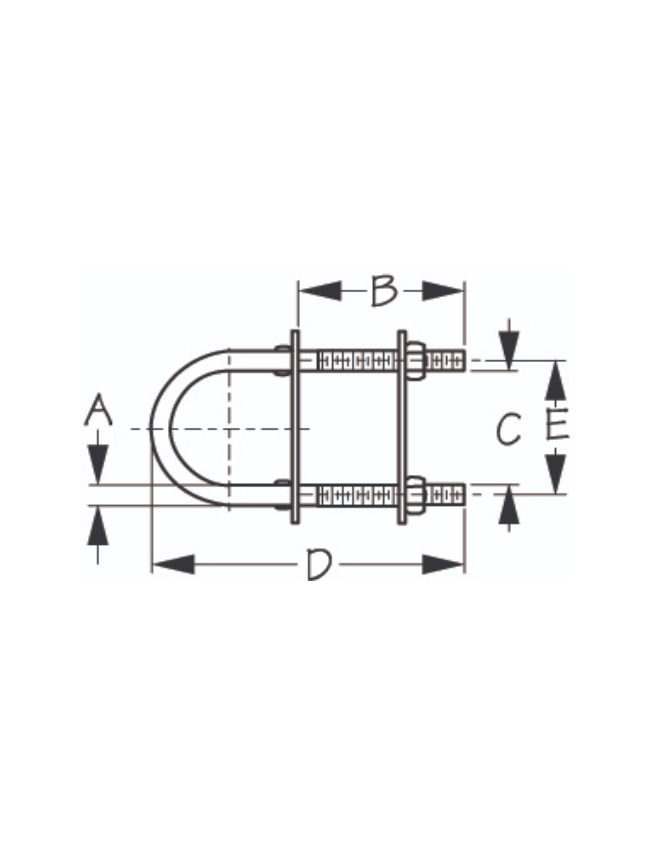

| SKU | A | B | C | D | E | B.S. (lb.) | Weight |
| 080243-1 | 4 mm | 1-3/8" | 1" | 2-9/16" | 1-3/16" | 1,650 | 0.08 |
| 080253-1 | 5 mm | 1-3/8" | 1" | 2-5/8" | 1-3/16" | 1,950 | 0.08 |
| 080263-1 | 6 mm | 1-1/4" | 1-1/16" | 2-9/16" | 1-5/16" | 2,950 | 0.13 |
| 080265-1 | 6 mm | 1-7/8" | 1-1/16" | 3-3/16" | 1-5/16" | 2,950 | 0.14 |
| 080283-1 | 8 mm | 1-3/8" | 1" | 2-3/4" | 1-5/16" | 3,850 | 0.19 |
| 080285-1 | 8 mm | 2" | 1" | 3-5/16" | 1-5/16" | 3,850 | 0.21 |
| 080288-1 | 8 mm | 3-1/8" | 1" | 4-1/2" | 1-5/16" | 3,850 | 0.26 |
