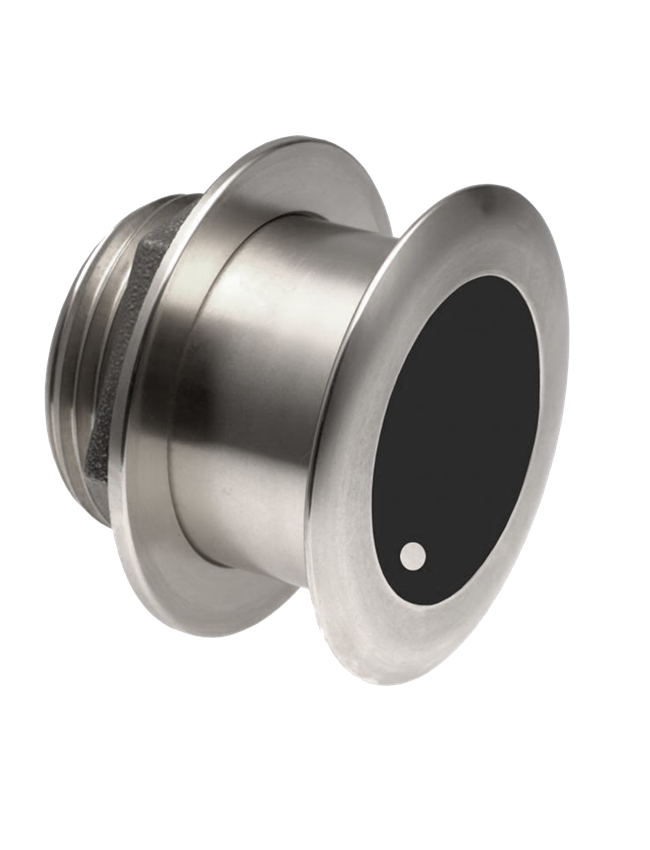

SS175M Medium Chirp, 1kW, 20° Tilt, Navico 9-Pin, DT
Description
Description
Product details
1 kW
The SS175M’s medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1500') and delivers ultra-clear target resolution.
Airmar’s Tilted Element™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
Key Features
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Medium frequency: 85 to 135 kHz
- 50 kHz of total bandwidth from one transducer
- Low-profile, thru-hull housing provides good display resolution at speed when installed properly
- Recommended for stepped, planing, or displacement hull
- Stainless steel housing for use in all hull materials
- Also available in a bronze housing (B175M) for use in a fiberglass or wood hull
- Patented Xducer ID® technology
